US $159
Original Price : US $318 (50%)
Limited Price Eachine Wizard X220S ARF RC Multicopter FPV With Omnibus F4 5.8G 72CH VTX 30A Dshot600 2206 2300KV with Free Shipping Worldwide!
4.49
Related Products :
High Quality Eachine Wizard X220 FPV Racer Blheli_S Naze32 6DOF 5.8G 48CH 200MW 700TVL Camera w/ FlySky I6 RTF FPV Drone
Eachine Wizard X220S RTF RC Quadcopter With Betaflight F4 5.8G 72CH VTX 30A 800TVL CCD Flysky FS-i6X VS Eachine Wizard X220
Eachine Tyro79 140mm 3 Inch DIY Version For FPV Racing Frame RC Drone Quadcopter F4 OSD 20A BLHeli_S 40CH 200mW 700TVL Toys
Eachine Wizard X220S FPV Racing Drone F4 5.8G 40CH 30A Dshot600 800TVL Flysky FS-i6X RTF
Product description

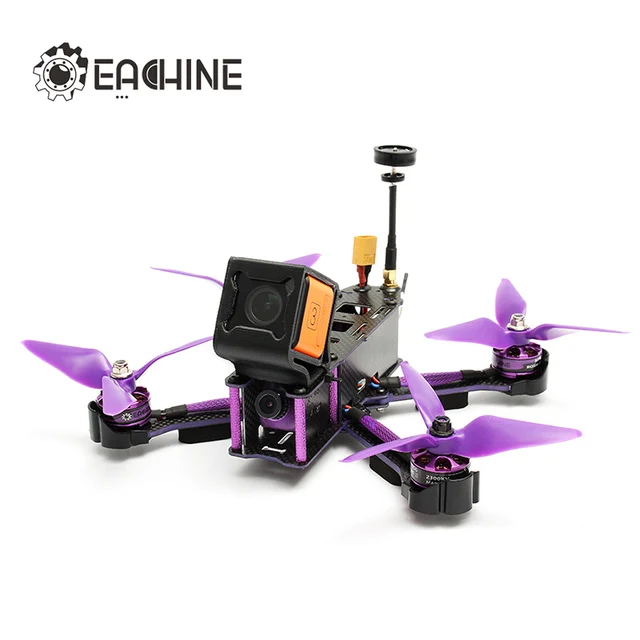

[32818720552]Eachine Wizard X220S FPV Racer Omnibus F4 5.8G 72CH VTX 30A Dshot600 2206 2300KV 800TVL CCD ARF
Description:
Item
Specification
EachineWizard X220S
Wheelbase: 220mm
Frame arm: 4mmlight material
Weigh:356g(withoutbattery and camera mount)
Takeoffweigh:561g
Use light composite material.
4mm thickness and 15mm width frame arms, the width is 10mm less than Eachine Wizard X220.
Frame kit with camera angle scale and 30° camera mount for Runcam 3 G opro session.
Anti-vibration sponges to protect the racer frome crashing.
Eachine MN2206 2300KV motor
KV: 2300
Max thrust:1100G
Length:35MM
NO.OF cell:3-5S
Diameter:28MM
Framework:12N14P
Shaft:3MM
Propeller:5 inch
Weight:28g
Eachine 30A BLHELI_S 4 in 1ESC
Con. current:30A
Summit current (10S):35A
Input voltage:2-5S
BEC:No
Programming:YES
Firmware:blheli_s
Weight:28g
Size: 36*36MM
Eachine 1179 800TVL CCD camera
Color: purple
Sensor: CCD
Resolution(horizontal center): 800TVL
Shell size: 25mm*25mm
Weight: 11g
Resolution: PAL: 1980H×1080 (2MP) NTSC: 1980H×1080V (2MP)
Format: PAL/NTSC switchable
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55dB.
AWB: ON/OFF
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: internal synchronization
Lens: standard 2.8mm lens
Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V)
Workig current: 70mA (low power consumption)
Workig temperature: -20℃--60℃
Humidity: 0%~98%
Strong backlighting effect
5.8G 72CH25MW 200mw 600MW
switchable transmitter
Video Format : NTSC/PAL
Channel: 72CH
Operating Temperature : -10~85℃
Connector: SMA Female (Inner hole)
Antenna Connector: SMA male(Inner needle)
BF3.1.5 Omnibus F4 V2 flight controller
Size: 35x35mm
Mounting hole: 30.5x30.5mm
Firmware: betaflight_3.1.5_OMNIBUSF4SD
Input voltage: 2-6S
SCM: STM32 F405 MCU
Sensor: SPI Sensor MPU6000
Berometer: BMP280
Slot: standard SD card slot
BEC: 5V/3A
STM32 F405 MCU, Runs betaflight_3.1.5_OMNIBUSF4SD, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
Built-in 5V/3A BEC.
Built-in galvanometer.
With LC filter.
Eachine 5051 3-blade propeller
Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm
This is the ARF version that comes without battery, charger, receiver and remote control.
Package included:
1 x EachineWizard X220S frame kit
2 x 2206 2300KV motor CW
2 x 2206 2300KV motor CCW
1 x Eachine 30A BLHELI_S 4 in 1 ESC
1 x BF3.1.5 Omnibus F4 V2 flight controller
1 x800TVL camera
1 x 5.8G 72CH 25MW 200mw 600MW switchable VTX
10 x Eachine 5051 3-blade propeller purple CW
10 x Eachine 5051 3-blade propeller purple CCW
1 x 30° Camera Mount(For Runcam3/G opro session)
1 x Pagoda antenna
2 x Battery strap
2 x Wrench
(Package doesn't include Runcam 3, the Runcam 3 on the pictures for reference only.)
Eachine Wizard X220S ARF RC Multicopter FPV With Omnibus F4 5.8G 72CH VTX 30A Dshot600 2206 2300KV 800TVL CCD For RC Racer Drone
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
