Product description

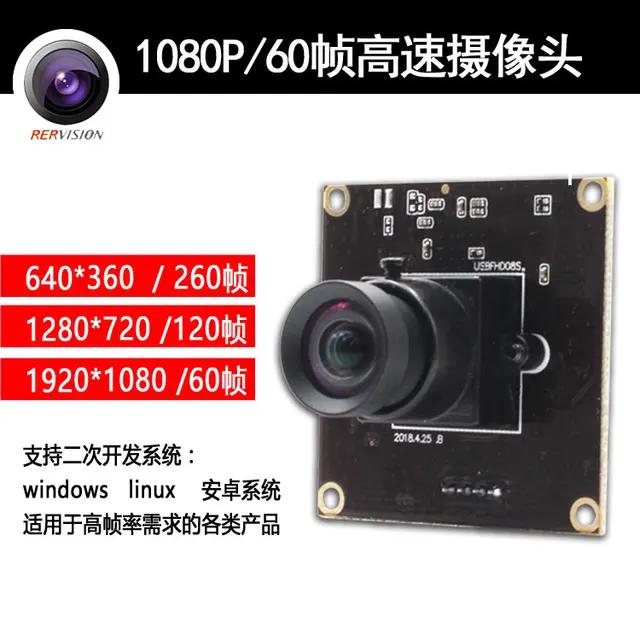

[4000472095037]This product is adoptedOV4689Chip，Belongs to high speed camera
sensor：OV4689
lens Size：1/3
Interface：USB2.0Interface
Trigger size：38mm*38mm
Highest effective pixel：Hardware200Million pixels1920（H）*1080(V)
Output Image format：MJPEG
Supported resolution and frame rate：1920*1080p 60Frame/MJPEG
1280*720P 120Frame/MJPEG
640*360p 260Frame/MJPEG
Suitable for application scenarios：Video Conference Advertising Machine High speed shooting Visual intercom
Product Model \ \
RER-USBFHD08S-LS29 \ \
Sensory film \ \
OV4689(1/3inch) \ \
Highest effective pixel \ \
1920 (H) *1080(V) \ \
Lens Size \ \
1/3 inch \ \
Pixel Size \ \
2.2um \ \
Image area \ \
5400 um x 3072 um \ \
Output Image format \ \ MJPEG \ \
Supported resolution and frame rate \ \ 1920*1080p 60Frame/MJPEG \\ 1280*720P 120Frame/MJPEG \\
640*360p 260Frame/MJPEG \ \
Focus \ \
Fixed \ \
Signal to noise ratio \ \
42dB \ \
Dynamic range \ \
72dB \ \
Sensitivity \ \
1.4V/lux-sec@550nm \ \
Minimum illumination \ \
0.5lux \ \
Shutter type \ \
Electronic rolling shutter / Frame exposure \ \ Interface Type \ \ USB2.0 High Speed \ \ Automatic Exposure controlAEC \ \ Support \ \ Automatic white balanceAEB \ \ Support \ \ Automatic gain controlAGC \ \ Support \ \
Adjustable parameters \ \ Brightness Contrast Color saturation Tone Clarity Gamma White balance Contrast of backlight Exposure \ \
Lens specifications \ \
Standard 2.9mm，Optional non-distortion lens \ \ Power supply and interface \ \ USB BUS POWER 4P-2.0mmSocket \ \ Voltage \ \ DC5V \ \
Current \ \
140Ma- 200mA \ \
Size \ \
38mm × 38mm \ \ Storage Temperature \ \
-20°C to 80°C \ \ Working temperature \ \
0°C to 70°C \ \
USBWire \ \
1M(2M/3M/5M Optional) \ \
System support \ \ Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） \\ MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC \
