Product description

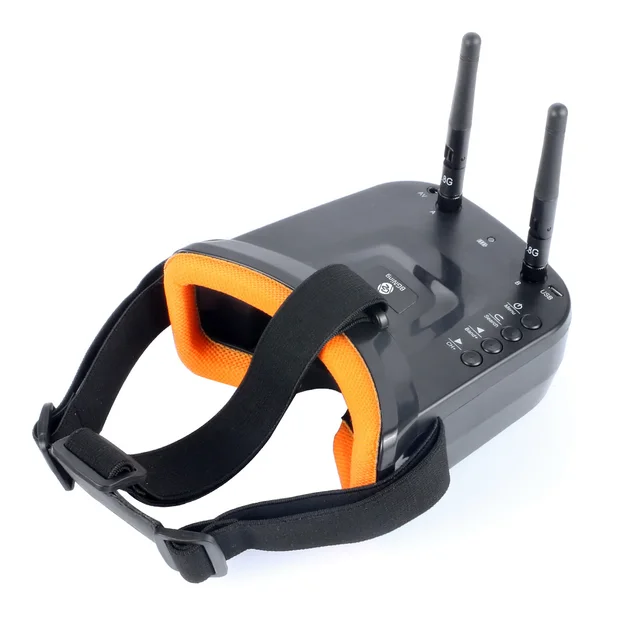

[32875325077]New Mini FPV Goggles 3 inch 480 x 320 Display Double Antenna 5.8G 40CH Built-in 3.7V 1200mAh Battery for Racing Drone Models
Highlight:
Double Antennas
Built-in 3.7V 1200mAh Battery
Support a key search frequency
RaceBand 40 channel Auto-Searching
Real-time video return 5.8G FPV Receiver
Feature:
â— Small size and light weight;
â— Low power consumption, Working current 300~330mA;
â— Double antenna reception to make the signal more stable;
â— RaceBand 40 channel, Auto-Searching;
â— 3.0 Inch 480*320 dot high brightness LCD screen;
â— Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
â— Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
â— Universal USB charging interface;
â— Real-time video return, Very low time-delay;
â— Bilingual menu in support of Chinese and English;
â— Support external video signal input;
â— Support AV signal output (Connect external DVR);
Specification:
Model
Name
Mini FPV Goggles
LCD Screen
Screen size: 3.0 Inch
Resolution: 480*320
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 350cd/m² with high brightness backlight LED
Video delay
Video time-delay less than 20ms
Lens
4X Fresnel Lens, 92% transparent rate no distort of light
Interface
Antenna
2 X RP-SMA male
USB
To charge the battery
AV Jack
External video signals input or internals AV signal output
Languages
English and Chinese
Power Supply
Power adapter: DC5V/1A (USB interface)
Battery:
3.7V/1200mAh,Each full charge revive around 2.5hr working time
Power Consumption:
*The device operating current of 300~330mA at 3.7~4.2V;
*Built-in battery maximum charge current of 500mA;
Wireless
Frequency Table(MHz)
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Band F
5740
5760
5780
5800
5820
5840
5860
5880
Band R
5658
5695
5732
5769
5806
5843
5880
5917
Body
Dimension: 13.5cm * 13.2cm * 6.5cm
Weight: 180g(with headband, not included antennas)
Controls Diagram:
Description:
â‘ Key 1: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.
â‘¡ Key 2: Short press for Auto-Searching (Automatic selection of the strongest channel).
â‘¢ Key 3: Short press for Band+ (Change bands A-B-E-F-R circularly).
â‘£ Key 4: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
⑤ Eye ring: protect the surrounding parts of the eyes, so that the wear more comfortable.
â‘¥ Micro-USB Charging port: Supports DC5V only.
⑦ Antenna port A: RP-SMA male.
⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.
⑨ Antenna port B: RP-SMA male.
â‘© AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video signal.
⑪ Head band: Adjustable headband.
Menu Operation Instructions:
In normal mode, press Key 1 to enter the MENU mode.
In MENU mode:
â‘ Key 1: Select the option bar.
â‘¡ Key 2: Return to normal mode.
â‘¢ Key 3: Value -.
â‘£ Key 4: Value +.
AV port Instructions:
Dimension Diagram:
Not included antennas and headband.
Safety instruction:
Read the entire instruction manual to become familiar with the features of the product before operating.
Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
Please avoid wet or humid environments.
Please use standard USB charger, charging voltage can only be 5V.
AV output and Video input cannot work at the same time, It is forbidden to insert external video in RF receiving mode.
