US $42.99
Original Price : US $42.99 (0%)

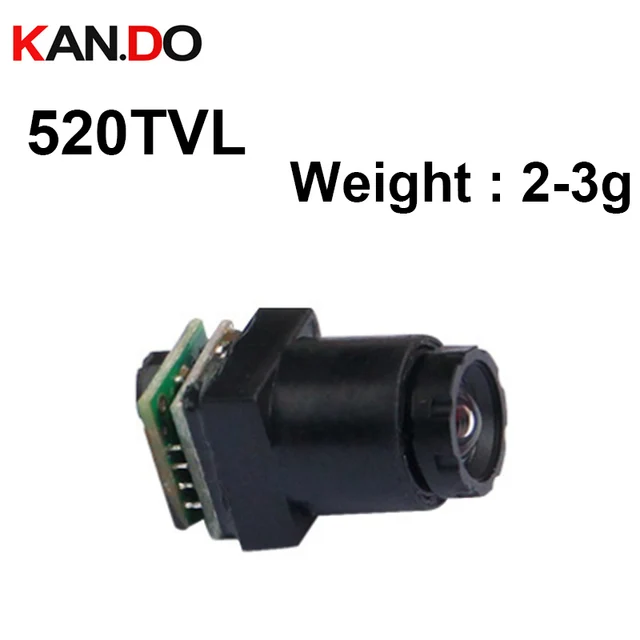

Best Price MC900-V9 robot camera drone camera analogue 0.0008Lux/F1.2 small serutiy camera 3.6V-5V MINI camera with Free Shipping Worldwide!
4.74
Related Products :
1pcs High Sensitive CCTV Microphone/ Audio Tiny Microphone for CCTV Security Cameras DVR NVR built-in camera
necklace loop earphone listening aids induction voice transmision earphone voice sender induction transmitter induction earphone
wired plastic magnetic sensor for door open or window normal close for your security alarm system wired
2pcs/bag 11mm Diameter 650nm IR Filter Cut Off Infared Wavelength 650nm filter for cctve lens IR filter
Product description
[33021996217]"Any dispute / Direct negative feedback" before contact means "Buyer bad" !! And not welcome such buyer !! Please go away !! ( Because business is cooperation ,not fight each other ) .
If protection time is running over ,please contact to extend time ,
if any problem found ,please contact to solve by a friendly way .
Note :
1. Power adaptor or transformer is not included in this sales .If you need ,please contact to buy at 2.5$ !!
2. Analogue Only weight 2-3g around ,very ok for drone .
Withoutaudio function
Specifications
PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC：656（H）×492（V）
PAL：786（H）×576（V）
SENSOR DIMENSION
4.75mm（H）×3.55mm（V）
SENSOR DIMENSION
520TV Lines
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F1.2/ 90°
S/N RATIO
＞48dB
FUNCTION
AUTO GAIN CONTROL
AUTO
WHITE BALANCE CONTROL
AUTO
BACK LIGHT COMPENSATION
AUTO
VIDEO OUT
1.0V p-p/75ohm
AUDIO OUT
no
WEIGHT
MC900-V9：2-3g
WORK CURRENT
DC5V: 70mA
POWER REQUIREMENT
DC5V:（3.6-5V ）
OPERATING TEMPERATURE
- 20°C ~ + 50°C ，less than 85% RH
CONNECTION
PIN1 Red DC5V PIN2 Black GND PIN3Yellow VIDEO OUTPIN4
Content :
camera x 1;
AV cable x 1 ;( BNC cable is available for option ,if you need please contact to leave message )
Power adaptor not included .
