Cheap Price 4 axle RC Multi QuadCopter Drone RTF ARF KK V2.3 Circuit board 1000KV Motor 30A ESC Lipo F450 Frame with Free Worldwide Shipping!
4.50
Related Products :
310 mm Fiberglass Frame DIY GPS Drone FPV Multicopter Kit Radiolink AT10 2.4G Transmitter APM2.8 1400KV Motor 30A ESC F14891-D
Plastic Tighten Thomb Knob Bolt Nut Screw Wrench Spanner Tool w/ Safety Rope for Gopro Hero 7 6 5 4 3 3 Plus Camera Mount
JMT 4Pcs/Kit Propeller Guards Protector Prop Blades Protection Cover for DJI TELLO Propeller Drone Quadcopter Accessory
Product description

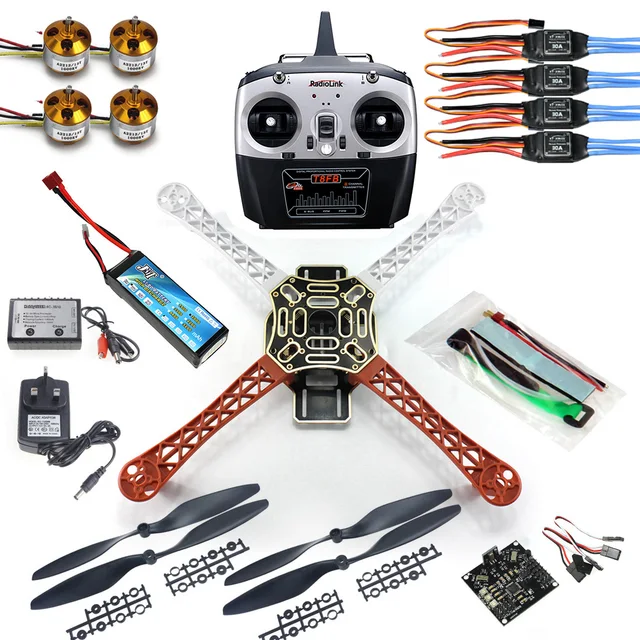

[32803677572]RC 4axle Multi QuadCopter UFO RTF/ARF:KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+6ch TX&RX
(assembly required buyers)
F02192-A RC 4axle Multi QuadCopter UFO RTF/ARF:
HJ 450 450F Nylon Fiber Flamewheel Frame *1
A2212 1000KV Motor installed
base*4
JMT 25A ESC*4
V2.3 Circuit board*1
Programmer Firmware Loader
USB*1
1045 Propeller*2 pair
JMT 11.1V 2200mah 20c lipo battery *1
Relate wire
Charger+adapter * 1 set
RadioLink T8FB 2.4GHz 8ch Transmitter *1
HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit
Fetures:
by advanced engineering material,super
strong & smooth.
High quality and strong ability of
anti-fall, lower maintenance cost.
Compact design with small numbers of
components, you can assemble it by youself quickly and
easily.
Suitable for both beginners and senior
Excellent quad-copter
products.
- Support KK MWC by new disign PCB board(Not Included)
Speicifications:
Color: Red + White + Black
Shaft distance: 17.7in/450mm
- Net weight: 0.65lb/282g - by advanced
engineering material,super strong & smooth
- Kit(need you assemble yourself)
KKMulticopter v5.5 Circuit board V2.3
As for the USB,this is the new version,we will send the the new version,thanks!
For the program method,please contact me
1. Simple structure, Easy
to Maintain and Debug Control
2. Relying on
potentiometer adjust gyro sensitivity.
3. Full servo signal
output, support normal ESC / analog servo
4. Support for single-axle
/ UFO, Y3 3-axle, Y4-type 3-axle, 4 axle, 6 axle, V22 flight
mode
5. Supports 4-axle "+" and
"X" flight mode, support for six-axle "HEXA6" and "Y6" flight
mode.
FlyCam MultiCopter
Controller Blackboard(kkMultiCopter)
A 2212 A2212 1000KV Brushless
Outrunner Motor W/ Mount *4pcs
KV: 1000
Max Efficiency: 80%
Max Efficiency Current: 4-10A
(>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g/set
Including: 1
set 2212 1000KV Brushless Outrunner Motor with Mounts *4
11.1V 20C 2200Mah Lipo Battery *1 pcs
Specification:
Output:11.1V(3S1P)2200mAh
Weight
About:193g
This Li-poly
battery features high efficient and high discharge,use a inspection machine to match packs, suitable for All Align trex 450
rc heli and other professional model
airplanes, cars, and guns.
Max
Continuous Discharge: 10C, Burst Discharge: 15C. Normal operating temperature is
approx. 40-65°C(within 80% of rated
discharge). Max. temperature: 80°C.
NOTE:
When using
high energy Li-poly Battery, please do not over-discharge, over-charge
batteries, or result over-high temperature. Discharging
capacity can't exceed 80% of the max capacity after full
charging to ensure a good cycle performance. Recommend to full
charge
a brand new battery before using and only discharge the battery 50% for first 5
times
to make a good efficiency of the battery. Please make it a habit to always count
time
for flight, or please set a low voltage protection on ESC (Cell voltage after
stopping using can not lower than 3.2V). Do not use the
battery at insufficient of voltage.
Do not expose batteries to sunshine or store/ charge
batteries at the temperature up to 35°C in a airtight car.
The environment high temperature could cause the damage or the
danger
of burst. If the battery becomes hot while high current discharging or
flying,
please do not charge the battery immediately. Wait to
cool down(about 20 mins), then inspect to recharge. If against follow the original
factory using rules, possibly cause the battery to inflate or
any dangerous accident happens.
Product Features:
1.Custom designed firmware Be applicable to helicopter, fixed wing, glider, multi-copter. Special firmware will be designed according to your model types. 2. Inheritance industrial designing Cooperate with professional designer of AT9. T8FB adds innovation and independent design concept, can be a perfect choice for your plane. 3. Online upgrade Unique upgrade mode, through simulator port and special Radiolink upgrade cable, no need for driving programs and is perfect compatible with all OS. 4. Humanized operation On the basic experiences of modelers, T8FB, simplify the operation, makes it easy to use even without illustration. 5. Long-tested anti-interference Follows the technology of wireless spread spectrum used by T7F, makes it possible to control freely in condition of same frequency interference. 6. S-BUS, PPM and PWM signal output at the same time Compatible with FUTABA S-BUS port, also supports cable connection input one by one, S-BUS, PPM and PWM signals are possible to use at the same time. 7. Incredible price Incredible price own high level specification. T8FB Technical Parameters
1. Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm. 2.Weight: 0.47kg(including R8EH) 3.Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz) 4.Modulation mode: GFSK 5.Channel bandwidth: 400KHz 6.Band width:1200KHz 7.Spread spectrum: FHSS 8.Adjacent channel rejection: >36dBM 9.Transmitter power: <100mW (20dBM) 10.Sensitivity: -104dBM 11.Speed rate:38kbps 12.PWM output: 1.0ms~2.0ms 13.Section precision: 2000, 0.5us per section 14.Cycle:15 ms/per frame 15.Radio T8FB operating voltage: 4.8V~18V 16.Radio T8FB operating current: <110mA 17.Receiver R8EH operating voltage: 4.6~10V 18.Receiver R8EH operating current: <30mA 19.Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.
(Please pay attention this:
The Radio Controller Software upgraded,The wire connecting for Receiver and KKMulticopter board has been changed.Please check and like this:)
