Product description
[32794299400]JMT Pro 2.4G 10CH RC 8-Axle Octocopter Drone Tarot X8 Folding PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit Motor ESC
Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.
Our technicist will help client to weld the some wiring for ESC and we will test all electronic parts before shipment.
If any Technical questions, Please message us but do not open dispute or leave negative feedback.
3Versions optional, The difference devices arethe Configuration of ESC and Propellers.
1) Hobbywing XRotor Pro 40A ESC No BEC + Tarot3K Pure CarbonProps Set 1555 TL2812 Propeller;
2)40A Brushless ESC Speed Controller + Tarot3K Pure CarbonProps Set 1555 TL2812 Propeller.
3) Hobbywing XRotor Pro 40A ESC No BEC + Tarot TL100D03 Folding Forward CW CCWPlastics Propeller+ Tarot TL100B15 Aluminum Alloy Folding Propeller Holder Clamp
Note: The item do not include Battery!
We recommend that client to ready the14.8-22.2 V, 4-6 S, 12000-20000mAH batteries

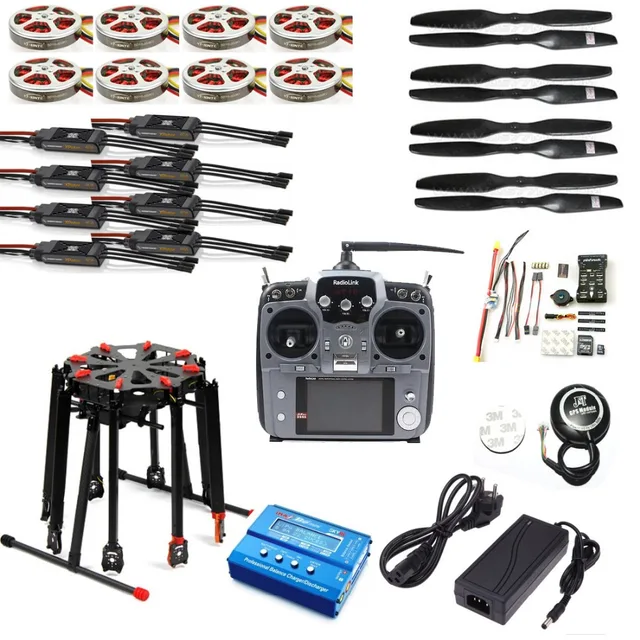

Package listing:
1x Tarot X8 TL8X000 8 axle Octocopter Umbrella Type Folding Frame with Electronic Retractable Landing Skid
8x 350KV Brushless Disk Motor high Thrust With Mount
4xTarot 3K Pure Carbon Props Set 1555 TL2812 PropellerORTarot TL100D03 Folding Forward CW CCW Plastics Propeller + Tarot TL100B15 Aluminum Alloy Folding Propeller Holder Clamp
8xHobbywing XRotor Pro 40A ESC NoBEC(Hobbywing 40A ESC set)ORJMT 40A ESC(JMT 40A ESC set)
1x Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 Bit ARM
1x Mini M8N GPS Module NEO-M8N GPS
1x RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver
1x SKYRC Imax B6 60W Mini Professional Balance Charger
1x 12V5A AC 100-240V Converter Adapter (US/AU/UK/EU Plug optional)
1x Tool Set (Bag)
Frame:
Product Specifications:
Symmetric Motor Wheelbase: 1050mm
Folding Propeller Specifications: 15 Inch
Arm Length: 416mm
Arm Weight: 106g
Centre Plate Diameter: 338mm
Undercarriage Clearance Height: 391mm
Battery Specifications: 15c, 22.2v, 10000-2000mha
6s Brushless Esc: 40a
Maximum Power Consumption: 4000w
Hover Power: 1500w (9.5kg)
Hover Time: 15min
Weight: 2250kg
total Weight: 2.7kg
ESC:
---------------------Hobbywing-------------------------
Item Name : Hobbywing XRotor-Pro-40A
Con.Current : 40A
Peak.Current (10s) : 60A
BEC: No
Lipo : 3S-6S
Parameter Option : DEO ( on/off )
Size and Weight :
Version A ( With Wire ) : 66x21.8x11mm ; 50g
1. Output: Continuous 40A, Burst 60A up to 10 Secs.
2. Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
3. BEC:Pentium-40A: 3A / 5V (Switch mode).
4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)
5. Size: 55mm (L) * 28mm (W) * 12mm (H).
6. Weight: Pentium-40A: 35g.
Motor:
1, the use of a hidden motor shaft design, more effective protection of the motor shaft.
2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.
3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency.
Excellent workmanship, quality assurance, energy saving high efficiency
KV:350 KV
Shaft diameters: 4 mm
Weight:about 105 g (with leads)
RemoteControl System:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK;
3.Channel bandwidth: 5.0MHz;
4.Spread spectrum: DSSS;
5.Adjacent channel rejection: >38dBM;
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
7.Operating Voltage: 8.6~15V;
8.Operating Current: <95mA;
9.Control distance: 800 meters ground;
10.Channel: 10 Channel,8~10 channel are customizable;
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
12.Simulator model: under the simulator
Flight Controller:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Charger:
Operating voltage range: 11.0-18.0 Volt
Circuit power: Max .charge power 60W
Max .discharge power 5W
Charge current range: 0.1-6.0A
Discharge current range: 0.1-2.0A
Li Po/Li Fe/Li Ion Cells : 1-6S
NICD/NIMH cells: 1-15s
PB battery voltage: 2V- 20V
Net weight: 233g
Dimensions: 10.2×8.4×2.9cm
Caution for the battery:
Don't over-charge, or over-discharge batteries.
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.
Version with HobbyWing 40A ESC with Carbon Fiber Propellers:
Version with40A ESC with Carbon Fiber Propellers:
​
Version with HobbyWing 40A ESC and Plastic Folding Propellers:
