Product description
[4000295270970]Please note:
Note: The ESC isInput lineLonger,suitable for mounting ESC on the arm under motor mount base

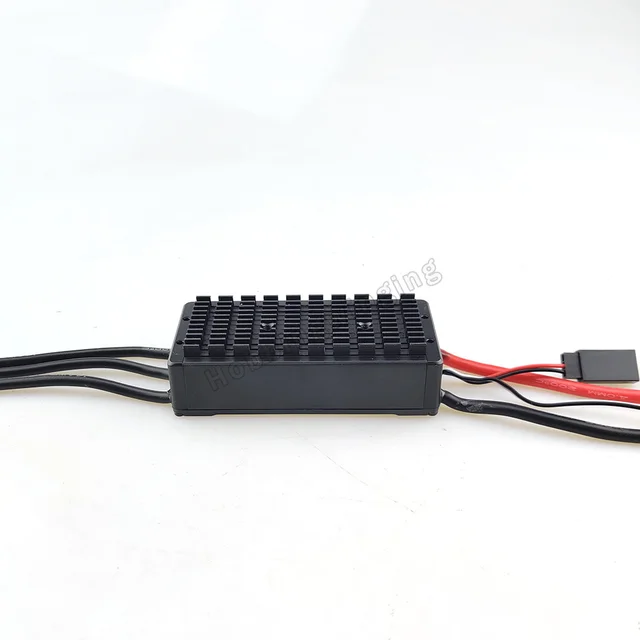

Model: EP-80A U80 V1
Support lithium battery number: 5-14S
Recommended lithium battery number: 12S
Continuous current: 80A (requires good heat dissipation)
Instantaneous current: 120A (requires good heat dissipation)
BEC: None
PWM input signal voltage: 3.3V/5V (compatible)
Compatible signal frequency: 50-500Hz
Throttle pulse width: default 1050us-1940us
Online upgrade: not supported
Current protection: support
Voltage protection: support
Throttle Loss Protection: Support
Stall protection: support
Temperature protection: support
Phase-to-phase short circuit protection: support
Error signal output: support
Speed signal output: support
Size: 79.6*36*23.5mm
Weight (without line): 90g
Power cord: 12AWG
Motor line: 14AWG
Working environment temperature: -20-65 °C
