CUAV Pixhack V3 Flight Controller PIX Open Source for FPV Drone Quadcopter Helicopter

Posted by at

US $151.77 Original Price : US $168.63 (10%)

Cheap Offer CUAV Pixhack V3 Flight Controller PIX Open Source for FPV Drone Quadcopter Helicopter with Free Worldwide Shipping!


 4.81

Buy on AliExpress


Product description

[32913846392]

CUAV Pixhack V3 Flight Controller PIX Open Source for FPV Drone Quadcopter Helicopter
Note：Since HMC5983 has been discontinued, the compass (magnetometer) on GPS will use IST8310. In addition, the default version does not provide extended LED lights, if you need to expand LED lights, please contact us!
Ground station : Click here
Flight controller drive: Click here
Pixhack information: Click here
APM/PIX information: Click here

Notice: The booking period is about 10 days.

Specifications:
- Processor: 2
- Main processor: STM32F427 V3
- Coprocessor: STM32F1
- Support remote control signal: PPM/SBUS/DSM
- Power supply redundancy: Support 3 channels redundancy
- 6* 3 groups of IMU
- Support fixed wing/multirotor 3-8 axis/helicopter/car/boat
- Support PX4/APM software

Sensors:
- L3GD20 3-axis Accelerometer
- LS303D Accelerometer+Magnetic meter
- Ms5611 Barometer
- MPU600 gyroscope+ Accelerometer
- MPU9250 Accelerometer+gyroscope+Magnetic meter
- Ms5611 Barometer

Parameter:
- Weight: 70g
- Shell material: CNC aluminum alloy
- Size: 68*44*15
- Working temperature: -10~55 degree C
- PWM output IO: 13
- Mavlink seriel port: 2
- Support GPS:2
- Debug interface: 1
- I2C interface*2
- CAN interface*1
- Support smart battery
- HackLink : Support
- Built in shock proof

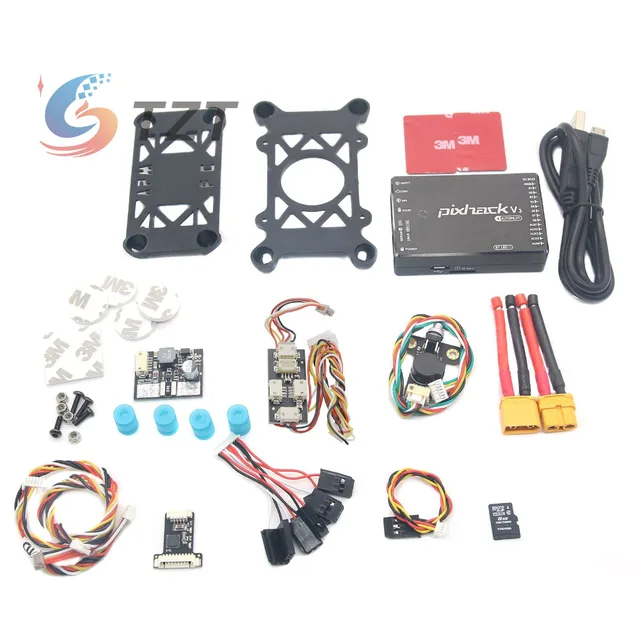

Package list:
- 1 x Pixhack V3 Flight Controller
- 1 x 8CH PPM encoder
- 1 x Voltage and current sersor (unwelded)
- 1 x 8G TF card
- 1 x Buzzer+expansion board
- 1 x Cable
- 1 x USB cable
- 1 x Shock proof plate
