US $5530
Original Price : US $5530 (0%)

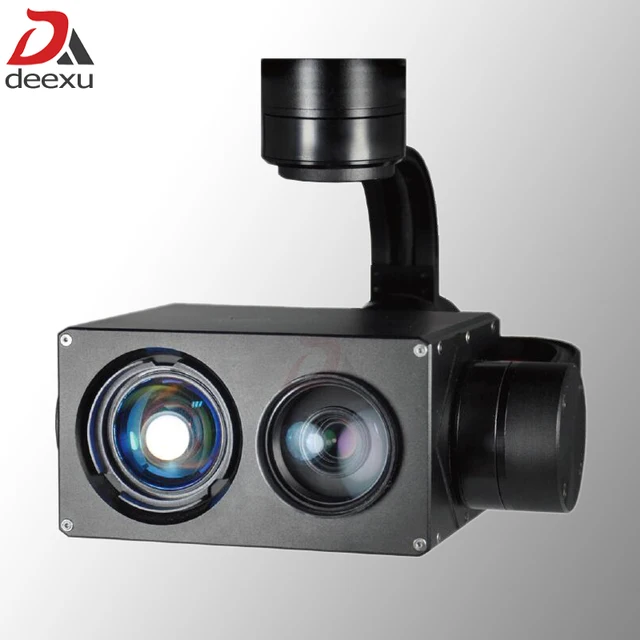

Best Price UAV Drone laser infrared night vision 30 times zoom HD starlight camera with 3 axis gimbal stabiliz with FREE Worldwide Shipping!
4.70
Related Products :
Dual sensor UAV Drone Gimbal Camera 50mm lens infrared thermal imaging camera and 30x zoom HD starlight camera
368g Lightweight UAV night vision infrared thermal imaging camera Drone thermo vision camera
Military Grade Scout Search Infrared Thermal Imaging Camera Vehicle Car Advanced Night Vision Camera
Object Tracking Function UAV Gimbal Camera 30x zoom HD starlight aerial patrol Camera Drone PTZ Camera
Product description
[32881608672]Used for public security, nightinspection,fire protection, electric power inspection, etc.
Compatible withmost of industrial drones and DJI M600 models.
Type: Digital Camera Style: BoxCamera
Sensor: IRC day-night HD CMOS Technology: Pan / Tilt / Zoom
Special Features: Vandal-proof Lens (mm):30x zoom 5.8 ~210 mm± 5%
Digital zoom:12x (360x with optical zoom) High Definition: 1920x1080P(Full-HD)
Video output: HDMI/SD Card Operating Temperature: -30- +80 ℃
Minimum object distance : 10mm(wide end) to 1200mm(tele end) (Default:300mm)
Minimum illumination: Colour 0.005Lux @ F1.5, Black-white 0.0005Lux @ F1.5
S/N ratio: More than 50 dB
Backlight compensation: Yes
Aperture: F1. 5~F 4.8 ±3%
Power Consumption: Quiescent 450mA@12V, Working 550mA@12V
Size: L163*W164*H158mm
Weight: 1265g
Pitch angle range of action: -90°~+90°
Roll angle range of action: -85°~+85°
Yaw angle range of action: -150°~+150°
Angle jitter: pitch and roll direction±0.01° ,horizontal direction±0.01°
Laser Infrared lighting:
Laser Chip Power: 2±0.2W
Object distance: ≥500m Spectral Range: 850±10nm(940nm,980nm)
Lighting angle: Synchronous zoom, 70°~2.0° adjustable
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
