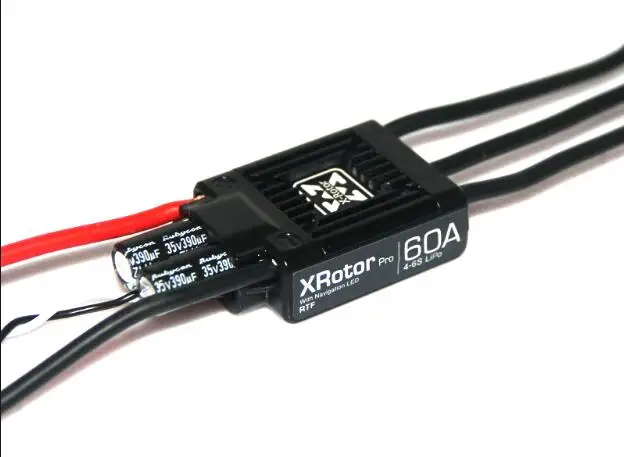

Best Offer XRotor 60A Four-axis Multi-axis Multi-rotor Drone Dedicated Brushless ESC with FREE Shipping Worldwide!
4.58
Related Products :
Dual 6E2 Tube Cat Eye Driver Board Kit DIY Amplifier
Bluetooth Headset Motherboard CSR8645 Bluetooth Module 5.0 Supports NFC Lossless APTX Noise Reduction
High Quality 7W2 Mixed High Current D-SUB Connector
Jay Bluetooth Headset Solution Bluetooth 5.0 Evaluation Board Bluetooth Headset Module
Product description
[4000365536653]XRotor series is for multi-axis operation. Helicopter/fixed wing is not available. Without BEC output, another power source or BEC is needed to supply power to the receiver and flight control. BBS test note attached:
1.1 multi-rotor special program, throttle response speed is very fast, beyond all kinds of open source software; 1.2 firmware optimized for disc motors with excellent motor compatibility; 1.3 highly intelligent, adaptive and easy to use; 1.4 throttle signal line is twisted pair, which can effectively reduce the crosstalk caused by signal transmission in copper wire and make flight more stable; 1.5 it can support throttle signal with a refresh rate up to 621Hz, and is compatible with various flight controls (note: throttle signals over 500Hz are all non-standard throttle signals); 1.6 the performance and stability of the MOSFET special driver chip are far better than the driver circuit built with discrete components; 1.7 ultra-low internal resistance MOSFET, strong flow resistance; 1.8 fine plastic shell with high brightness LED navigation light on the back; 1.9 microdial code switch is provided on the back of electric adjustment, which is used to set on/off of LED navigation light, LED light color, inlet Angle and motor steering.
Product specifications: Continuous output current :50A Instantaneous maximum current :70A BEC output: none Operating voltage :Lipo 2s-6s (7.4v-25.2v) Parameter options: Angle of entry (high/middle) LED navigation light (on/off) LED light color (red/green) motor steering (clockwise/counterclockwise) Weight: 46 g Volume (mm):48 x 30 x 15.5 Applicable wheelbase: more than 650mm
