US $47.03
Original Price : US $67.19 (30%)
Discount Offer High-precision One-way Lidar Range Finder Sensor Module 0.3-12m Serial Port for Arduino Pixhawk Dro with Free Worldwide Shipping!
4.67
Related Products :
8m 360 Degree LiDAR Held Sensor for ROS Robot Module LiDAR Scanner Short Measuring Sensor Held The Range of 0.13 to 8m
360 Degree Industrial 8m Laser Sensor LiDAR Scanner for ROS Robot Module short Measuring Sensor 3iLIDAR Positioning Navigation
Obstacle Avoidance Scanner Large Screen Interaction 16M Lidar Positioning Navigation Path Planning Sensor
HB100X 2-16M Doppler Radar Human Body Induction Switch Module HB100 X 10.525GHz Microwave Sensor For Ardunio
Product description

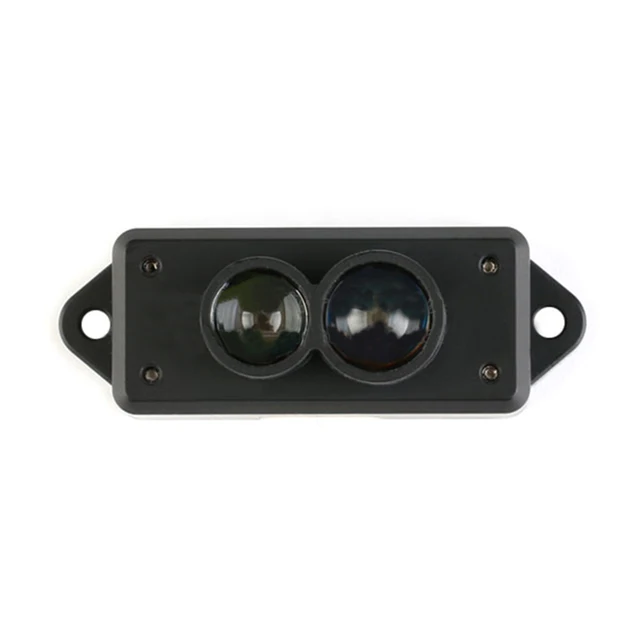

[4000112269448]High-precision One-way Laser Range Finder ToF Sensor Module 0.3-12m Serial Port for Arduino Pixhawk Drone Overview: TF Mini LiDAR is a one-way laser range finder based on time-of-flight technology (ToF). It consists of special optical and electronic equipment, and integrates an adaptation algorithm for various indoor and outdoor application environments. The radar is small in size but excellent in ranging performance. It can be used as a distance measuring tool to detect the distance of obstacles in front; it can also be used as the eye of the robot to provide distance information for the robot's safe obstacle avoidance and route selection; in various machine control scenarios, support system automation; because of its volume Small, lightweight and low power consumption, it is also suitable for drone height and terrain tracking. TF Mini detection range up to 12m, support 100Hz sampling resolution, within 6m accuracy within 4cm; 6~12 meters, accuracy within 6cm, FOV field of view 2.3°, strong anti-interference, can be used under outdoor glare Work, the overall weight is as light as 4.7g. TF Mini LiDAR uses UART (TTL) communication interface, can be powered by standard 5V, average power consumption of 0.6W, compatible with various controllers. Note: Products that detect high-reflectivity objects, such as mirrors and smooth tiles, run the risk of failure. There is a risk of failure when there is a transparent object, such as glass or water, between the product and the target being measured. Do not touch the board directly with your hands. Wear an electrostatic wrist strap or anti-static gloves if required. Application: Machine control and safety sensors Robot distance detection Drone height and terrain follow Characteristic: One-way ranging laser radar Detection distance up to 12 m Excellent ranging performance and high precision Refresh rate up to 100HZ Responsive Small size, low power consumption Specification: Voltage range: 4.5V~6V Communication interface: UART (TTL) Working range: 0.3m~12m (@ indoor) 10% reflectance range: less than 5m Average power consumption: 0.6W Receiving angle: 2.3° Zui small resolution: 5mm Refresh rate: 100Hz Ranging accuracy: 1% (<6m), 2% (6~12m) Distance measuring unit: mm Band: 850nm Size: 42mm × 15mm × 16mm Working temperature: 0°C~60°C Storage temperature: -20 ° C ~ 75 ° C Anti-ambient light: 70Klux
TF Mini LiDAR(12m) * 1 Wiring A * 1
