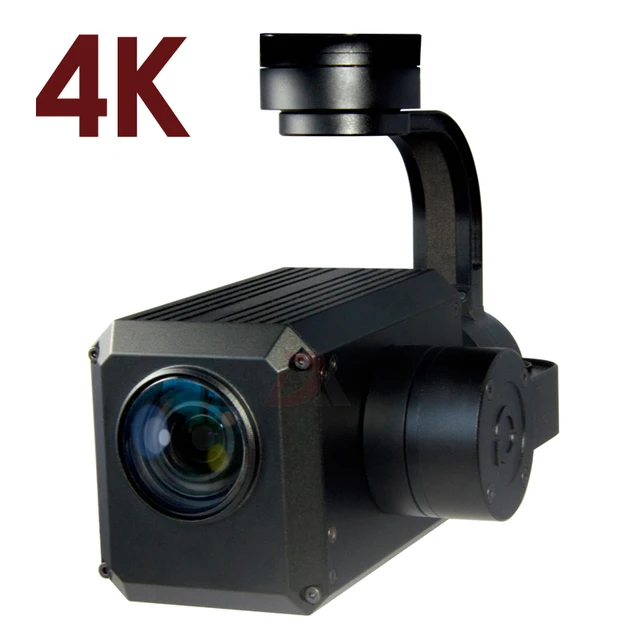

Limited Price Object Tracking UAV Gimbal Camera 25x zoom HD 4K Drone Camera with FREE Shipping Worldwide!
4.42
Related Products :
Infrared thermal imaging Camera Vehicle Car advanced night vision camera
Dual sensor UAV Drone Gimbal Camera 50mm lens infrared thermal imaging camera and 30x zoom HD starlight camera
IP67 Infrared Thermal Imager Car off road Vehicle Night Vision Driving Scout Hunting Search Infrared Thermal Imaging Camera
Military Grade Scout Search Infrared Thermal Imaging Camera Vehicle Car Advanced Night Vision Camera
Product description
[32942018536]Used for Zoomaerial photography,Drone patrol, Public security, etc.
Compatible withDJI M200.
25x zoom HD Starlight Camera
Imager sensor
1/2.3 typeCMOS
High Definition
4K 3840x2160, 1080P(Full-HD)
Lens
25x zoom F=4.08mm-81.6mm
Minimum object distance
10mm(wide end) to 1200mm(tele end) (Default:300mm)
Minimum illumination
Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio
More than 50 dB
Backlight compensation
Yes
Aperture control
16 steps
Gimbal Description
Power Consumption
Quiescent 330mA@12V, Working 450mA@12V
Pitch angle range of action
-90°~+90°
Roll angle range of action
-85°~+85°
Yaw angle range of action
-150°~+150°
Angle jitter
pitch and roll direction±0.02° ,horizontal direction±0.03°
Size
L144*W85*H134mm
Weight
782g
Object Tracking Function
1.Function description
B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display.
2.Tracking Performance
1 ) U pdate rate of deviation pixel 50Hz
2) Output delay of deviation pixel <15ms
3) Minimum object contrast 5%
4) The minimal signal-to-noise ratio (SNR) 4
5) Minimum object size 16*16 pixel
6) Maximum object size 160*160 pixel
7) Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object position<0.5pixel
9) Object memory time 100 frames
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
