US $294
Original Price : US $341.86 (14%)

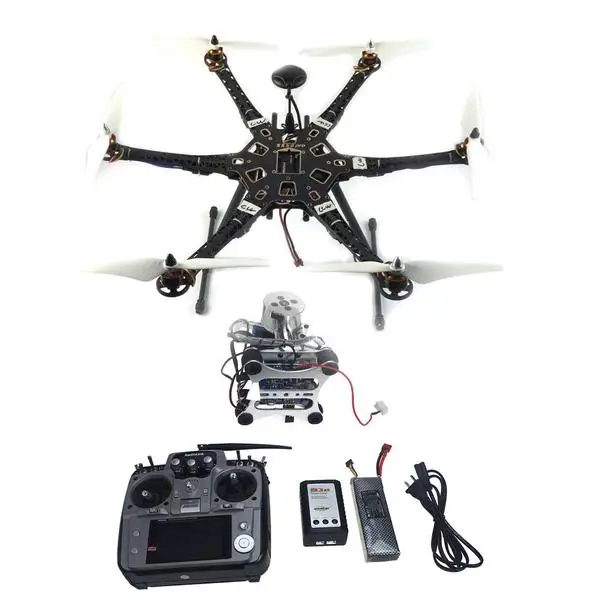

Discount Price Assembled Full Set Drone RTF HMF S550 Frame GPS APM2.8 Flight Control with Compass AT10 TX/RX 2-axi with Free Shipping Worldwide!
4.87
Related Products :
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photography Accessories
XILETU XJ-8 Tripod phone tripod mount Head Bracket Mobile Phone Holder Clip For Phone Flashlight Microphone With Spirit level
JEYI VolleyStar-PRO Black Heat Sink Heatsink M.2 NVMe SSD NGFF TO PCIE X4 Adapter MKey Port Card PCI-E 3.0 x4 Full Speed RGB LED
Aluminum L-type Adjustment Tighten Locking 7-shaped Handle Screw M5 M4 Adjustable Screws DSLR Camera Photographic Parts
Product description
[32435022955]Assembled Full Set Drone RTF HMF S550 Frame GPS APM2.8 Flight Control with Compass AT10 TX/RX
Packing including :
1X HMF S550 Carbon Fiber RC Hexacopter Frame Kit + Landing Gear 6-Axis FPV F550 Flamewheel Upgrade
3XD2212 920KV Clockwise Counter-clockwise CW Brushless Motor
3XD2212 920KV Clockwise Counter-clockwise CCW Brushless Motor
6X30A Brushless ESC
3X CW CCW propeller 9443
1XAPM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass
1x6M GPS with Compass L5883 25cm Cable
5x10cm Servo Extension Lead Wire Cable MALE TO MALE KK MK MWC flight control Board For RC Quadcopter
1xAluminum 2-axis Gimbal Camera Mount PTZ
18x3.5mm Bullet Connector ( banana plug )
1xHook & Loop Fastening Tape
1xT Plug Male Connector Silicone Wire With 11.5CM 14awg
1xIMAX RC B3 Pro Compact Balance Charger
1x11.1V 3300Mah 25C Quad / multi-axis aircraft with 3S lithium battery
1*RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D
APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for FPV RC Drone
APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.
6M GPS with Compass L5883 25cm Cable for DIY APM 2.8 PIX PX PX4 FPV RC Multicopter Drone
HMF S550 Carbon Fiber RC Hexacopter Frame Kit + Landing Gear 6-Axis FPV F550 Flamewheel Upgrade
Features:
- Adopts S800 upward tilt arm design
- Plastic injection moduling, ensures hardness and lighter weight
- Brushless gimbal compatible for FPV (Not included)
30A Brushless ESC
1 Specification
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D
Ship at random color
RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D
Technical Parameter:
1. Dimension:18×9.5×22cm;
2. Weight:0.95kg;
3. Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4. Modulation mode:QSPK;
5. Channel bandwidth:5.0MHz;
6. Spread spectrum:DSSS;
7. Adjacent channel rejection:>38dBM;
8. Transmitter power: <100mW(PCB testing),
<20dBm(3 meter air testing);
9. Operating Voltage:8.6~15V;
10. Operating Current:<95mA;
11. Control distance:800 meters ground;
12. Channel:10 Channel,8~10 channel are customizable;
13. Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14. Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15. Screen:16 colorful screen,size 78×52mm,320*480 pixel.
B3 AC LiPo 3S Battery Balance Charger
11.1V 25C 3300 Mah battery
Aluminum 2-Axis Gimbal Camera Mount PTZ w/ Brushless Motor Controller
just the gimbal , do not including the camera
