US $46.99
Original Price : US $46.99 (0%)
Cheap Price F17282 PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU PX4IO Safety Switch Buzzer 1G SD for with Free Shipping Worldwide!
4.68
Related Products :
Plastic Tighten Thomb Knob Bolt Nut Screw Wrench Spanner Tool w/ Safety Rope for Gopro Hero 7 6 5 4 3 3 Plus Camera Mount
JMT 4Pcs/Kit Propeller Guards Protector Prop Blades Protection Cover for DJI TELLO Propeller Drone Quadcopter Accessory
Mini Detachable Tripods Mount Adapter for Gopro Hero 3+ Plus 3 2 Monopod/XIAOYI /XIAOMI + F08817
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photo Studio Accessory
Product description
[32813063936]PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU +PX4IO with Safety Switch Buzzer 1G SD for DIY RC Drone FPV Multirotor Quadcopter
Note:
Open source products, once sold, no return, if quality problems, Please return for repair. Does not provide one to one support. Buy carefully!
If you are using a PWM receiver, pleaseready a PWM / PPM converter.
Description:
- The board integrates with PX4FMU+PX4IO - Pixhawk is with new 32 bit chip and sensor technology
Features: - Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system; - 14* PWM/ actuator output; - Bus interface (UART, I2C, SPI, CAN); - Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; - Provide automatic and manual mode; - Provide redundant power input and fault transfer function; - Color LED lamp; - Multi tone buzzer interface; - Micro SD to record flight data;
Processor: - 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit - Main frequency: 256K, 168MHZ RAM - 32 bit STM32F103 backup co processor
Sensor: - L3GD20 3 axis digital 16 bit gyroscope - LSM303D 3 axis 14 bit accelerometer /magnetometer - MPU6000 6 axis accelerometer / magnetometer - MS5611 high precision barometer
Interface: - 5* UART, 1*compatible high voltage, 2*hardware flow control - 2* CAN - DSM/DSM2/DSM-X satellite receiver compatible input - Futaba SBUS compatible input and output - PPM signal input - RSSI (PWM or voltage) input - I2C - SPI - 3.3 and 6.6VADC input - External USB MICRO interface

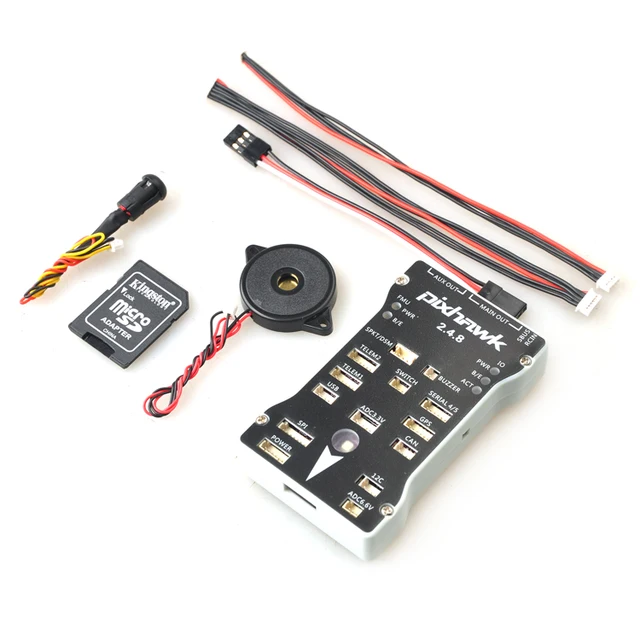

Package included: - 1 x 2.4.8 Pixhawk main control - 1 x Flight control shell - 1 x Safety switch - 1 x Buzzer - 1 x 6pin to 6pin line - 1 x 4Pin to 4Pin line - 1 x 3pin DuPont line
- 1 x 1G SD Card
