US $97.69
Original Price : US $97.69 (0%)
Discount Offer DIY RC Drone Quadrocopter X4M380L Frame Kit APM 2.8 Flight Control GPS Drone Accessory Kits Parts F with Free Shipping Worldwide!
4.31
Related Products :
DIY RC Drone Assembled F550 6-Aix RTF Full Kit with APM 2.8 Flight Controller GPS Compass & Gimbal Accessory Parts F05114-AS
Walkera VITUS 320 Portable Folding Aircraft 5.8G Wifi FPV 3 Axis Gimbal 4K HD Camera RC Camera Drone Quadcopter
Plastic Tighten Thomb Knob Bolt Nut Screw Wrench Spanner Tool w/ Safety Rope for Gopro Hero 7 6 5 4 3 3 Plus Camera Mount
JMT 4Pcs/Kit Propeller Guards Protector Prop Blades Protection Cover for DJI TELLO Propeller Drone Quadcopter Accessory
Product description

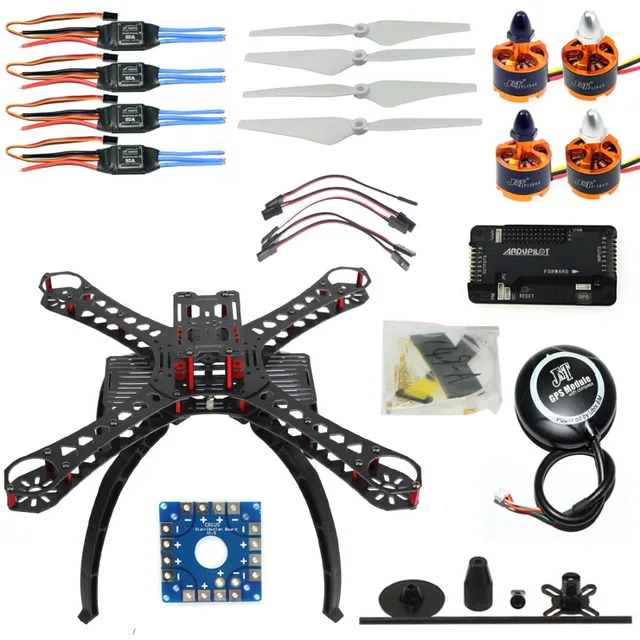

[32805842927]Package include:
X4M380L Fiberglass Frame *1
Clockwise Brushless Motor *2
Counter-clockwise Brushless Motor *2
30A Brushless ESC Speed Controller *4
9443 Propeller *2
KK Connection Board *1
APM2.8 Flight Control *1
6M GPS with Compass *1
3.5mm Bullet Connector *12
20cm Hook and & Loop Fastening Tape *1
T Plug Male Connector Silicone Wire *1
5pcs 10cm Servo Receiver Extension Lead Wire Cable*1
GPS Folding Antenna Mount Holder*1
Notice: BeforeyoucanconfigureyourAPM,youwillneedtofirstconnecteverythingtogether.ThisguidewillshowyouallthecablesandpartsthatyouwillneedtoconnecttoyourAPM. TypicalQuadcopterLayout PleasenotetheillustrationBelowhighlightsa(TYPICAL)installation.ItcontainsoptionalequipmentincludingaCameraGimbalandaBatteryMonitoranditutilizesanESCwired"Y"powerconnectionratherthanthepowerdistributionboardcommontomanyMultiCopters. 1.ConnectingyourmotorsandRCgear OverviewofconnectionsontheArdupilotMegav2board Note:theinstructionsbelowareforregularRCreceiverswithPWMoutput(onecableperchannel).Ifyou'reusinga"PPM"receiver(onecablecarriesallchannels),followtheinstructions. BeforeyoucanconfigureyourArducopter,youwillneedtofirstconnecteverythingtogether.Thisisquiteeasy.YouneedtoconnectyourRCreceivertotheInputsideoftheboard.YoucanusethecablesincludedwithyourArducopterKit,orifyouareusinganotherframe,youcanusejumpercables,orfemaletofemaleservocables ConnectionsbetweenRCreceiverandArdupilotMegav2board Ifyouareusingfemaletofemaleservocables,theground(black)sideofeachconnectormustbeontheoutsidefortheboard,thesignal(white/orange)needstobeontheinsideasshownbelow. Connectingwithstraightconnectors Connectingwithrightangleconnectors Ifyouareusingamulti-pinconnectorthatwasincludedwithyourArducopterKit,connectthemasshownbelow InputSideforRCreciever OutputsidetoPDB Pleasenote,thatyourESC,connectorsshouldbepluggedinthetheoutputside,itissuggestedthatyouonlyusepowerfromoneofyourESC's.ThiscanbedunebycuttingtheredwireonallbutoneoftheESC's,orbyusingaspecialadaptor.2.ConnectingArduCoptermotors OnceagainifyouareusinganArducopterKit,withthePDB,thenyoudontneedtoworryaboutthisifyousolderedeverythingcorrectlyasthemotorsareassignedtothecorrectpinswiththecablesyoupluggedconnectedinthepreviousstep.Howeveryouwillneettomakesureyourmotorsarespinninginthecorrectdirection.Theimagesbelowshowthepossiblearducopterconfigurationswithcorrectmotororientation QuickTip:Ifyourmotorisnotspinninginthecorrectdirection,simplyswitchthepositionofanytwooftheESC-motorwires. ArducopterQuad ArducopterTri ArducopterHexa,Octa,andY6 ArducopterOCTAQUAD(X8) ConnectingaRoll-TiltCameramount 3.ConnectingOptionalSensors Sonar-UltrasonicRangefinder AC2supportstheMaxSonarlineofsonarsforlowlevelaltitudeholdandinthefuturecollisionavoidance.Below10meterssonarisprimarilyusedforaltitudehold.Above10meters,thebarometricsensorisused.GPSisnotrequiredforaltitudehold. ConnectyourUltrasonicSensortotheA0portofyourArdupilotMegav2board Thesonarsensorsarequitesensitivetonoise,addingsomethinglikeaferritechoketoyourcablecouldhelp.ThemostimportantistomountyoursonarawayfromotherelectronicslikeESC,orwirelesstelemetrymodules. PossibleCausesofsonarInterferance ElectricalnoisecausedbyESCs,Servos,orswitchingBEC'sonthesamecircuitastheSonar EMFradiationfrommotors,motorwires,ESC'sorXbee. Acousticnoisefrompropellers Vibrationfrommotors,props,etc. OpticalFlowSensor Theopticalflowsensorisusedtoimprovethepositionholdaccuracyofyourarducopter.ThissensorissupportedfromArducopter2.6andabove. ConnectingtheopticalflowsensortoAPMv2 Power,GND,NCSpinsshouldbeattachedtoA3 MISO,MOSIandSCLKpinsshouldbedirectlysolderedtothepinsshownabove Defaultmountingislenspointingdown,pinsforward Itsagoodideatosecurethewireswithsomecabletiessotheydontbreakoffovertime Howtoconnecttheopticalflowsensortoyourardupilotmegaboard.Makesurethepinsarefacingforward Nowthateverythinghasbeenconnectedeverythingthenextthingtodoisconfigurearducopterfirmwareforyourframe.
