Best Offer Fixed Wing VTOL drone 2.5kg payload 2.5hour endurance long range uav for inspection survey aerial p with FREE Shipping Worldwide!
4.30
Related Products :
Drone Zoom Camera 30X EOIR Dual Sensor Gimbal camera for fix wing with SDI video output Military application
Herelink 2.4G Video Downlink for uav multirotor VTOL fixed wing cover range 10km FPV transmitter and receiver
Hybrid Fixed Wing VTOL drone 4 to 8hour endurance long range uav for inspection survey aerial photography agriculture search
FPV Aircraft Long rang RC mapping VTOL fixed wingdrone for map and survey for Emlid REACH RTK PPK System Long Range Inspection
Product description
[33007722210]Watch more videos on Youtube
https://youtu.be/HFzmH0pnY4U
Fly demo:
https://youtu.be/H-M0Mm12N7Y
Introduction

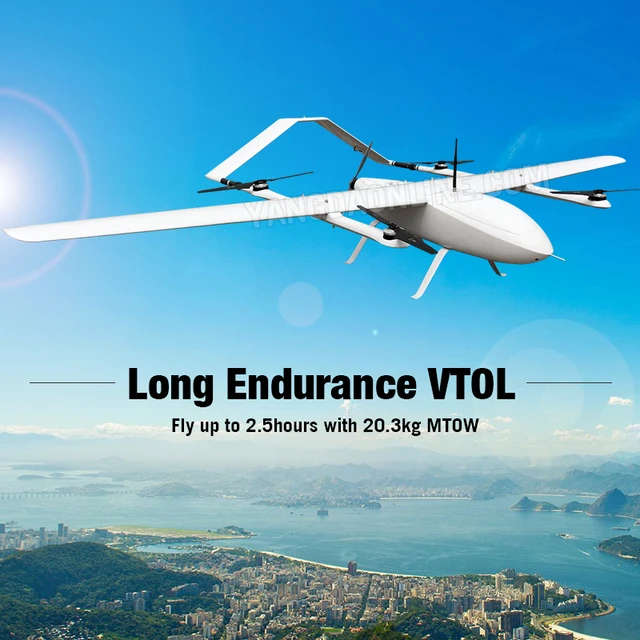

YANGDA FW-320is a reliable and affordable VTOL fixed-wing plane designed for long-range inspection, survey, aerial photography, agriculture, search and rescue and public safety applications. As a fixed-wing UAV with VTOL and hover capabilities, the FW-320features a modular airframe that can be set up in less than 10 minutes, does not require runway or catapult to get airborne. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.
Tool-free assembly
Due to its modular airframe design, FW-320can be set up in less than 10 minutes by a single man.
Long flight time
FW-320airframe is using light-weight and high strength composite material, which will enable the fixed-wing plane to fly up to 2.5hours at20.3 KG MTOW, at an average cruising speed of 78KM/H.
Support color customization
You can choose your color for FW-320VTOL drone.
Multiple camera options
These cameras are compatible with FW-320VTOL aircraft:Sky Eye-U30 30X zoom camera,Eagle Eye-30IE-U 2-axis 30X EO/IR camera.
Specification
MTOW
20.3kg
Weight w/o battery and payload
9.69kg
Wingspan
3200 mm
Length
1,200 mm
Height
500 mm
Frame weight
3.2kg
Max payload(battery included)
10.61kg
Battery weight
7.53kg
Endurance(MTOW 20.3kg)
2.5 hours
Cruise speed
78-90km/h
Max speed
100km/h
Stall speed
57.6km/h
Your Purchase Includes
1 x YANGDA FW-320 VTOL fixed-wing airframe(White in default)
4 xT-motor MN605S 210KV
4 x Hobbywing 12S 80A ESC
2 x 2280 T-motorPropeller CW&CCW
1 x Hobbywing 12S 120A ESC
1 x Dualsky XM6360EA-22 KV190
1 x Wood 19*12 Propeller CW
4 xKST DS135MG Servo
1 xAir Speedometer
2 xPower Module for autopilot
1 x V5+ autopilot
1 xYR16S Radio Controller
2 x TATTU 6S 25000mAh Lipo battery
2 x TATTU 6S 8000mAh 25C Lipo battery
1 x Assembly and Flight Test Service
1 x Aviation box
Options
Long range HD video system:Videopass(20-200KM range)
