US $170.58
Original Price : US $187.45 (9%)
Cheap Offer RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV Radiolink AT9S Transmitter APM2.8 1400KV with FREE Shipping Worldwide!
4.69
Related Products :
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photography Accessories
XILETU XJ-8 Tripod phone tripod mount Head Bracket Mobile Phone Holder Clip For Phone Flashlight Microphone With Spirit level
JEYI VolleyStar-PRO Black Heat Sink Heatsink M.2 NVMe SSD NGFF TO PCIE X4 Adapter MKey Port Card PCI-E 3.0 x4 Full Speed RGB LED
Aluminum L-type Adjustment Tighten Locking 7-shaped Handle Screw M5 M4 Adjustable Screws DSLR Camera Photographic Parts
Product description
[32773192314]RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV Radiolink AT9S Transmitter APM2.8 1400KV Motor 30A ESCVIDEO LINK: https: www.youtube.com/watch?v=Nho_H_nF1w8
Specifications:frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 gramsgeneral configuration 5"-10" propeller (Not inclued)Personality Across Design,Material:Fiberglass Frame kit
Frame reference:
Motor: MT2204 or MT2206 (Not included)Propellers: (Not included)2204 motor use FC 5"-6" blade2206 motor use FC 5" 6" 8" bladeESC: 15A-20A (Not included)Voltage: 11.V-11.8V (Not included)Weight about: 200gMotor:KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g
ESC:
1 Specification
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.
2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
3 Advantages
3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.
3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Radiolink AT9s Transmitter Features
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm2. Weight: 0.88kg3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)4. Modulation mode: QPSK5. Channel bandwidth: 5.0 MHz & 250Kbps6. Spread spectrum: DSSS ;FHSS7. Adjacent channel rejection: >38dbm8. Transmitter power: <100mW (20dbm )9. Operating current: <90mA 12V10. Operating voltage: 7.4 ~ 18.0V11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment12. Channel: 10 channels, 5-10 channels are customized13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)

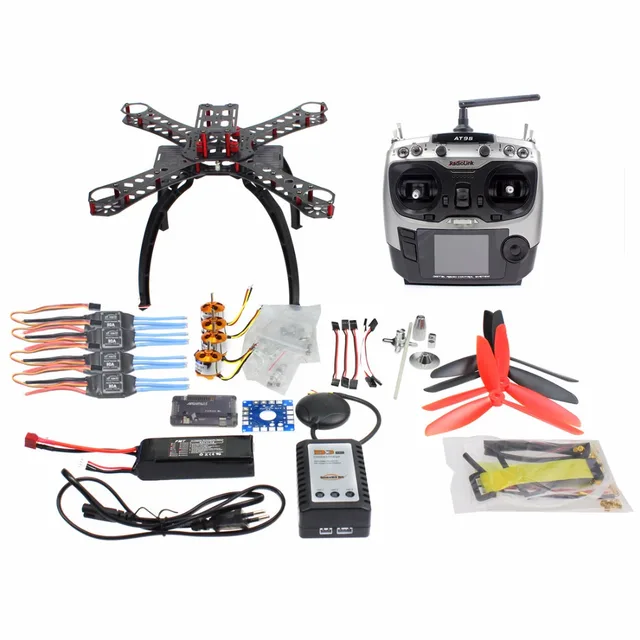

Package listing:
1* Fiberglass Alien Across Mini Quadcopter DIY Frame Kit
4* A2212 1400KV Brushless Outrunner Motor
4* XT-XINTE 30A Brushless ESC Speed Controller
2* 7045 propeller (pair)
1* KK Multi-Copter Power Battery to 8 ESC Connection Board
1 *APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass1 * 6M GPS with Compass L5883 25cm Cable
5 * 10cm Servo Extension Lead Wire Cable MALE TO MALE
1* GPS Folding Antenna Mount Holder
1* Radiolink AT9S Transmitter & Receiver
1* 11.1V 20C 2200Mah Lipo Battery
1* IMAX RC B3 Pro Compact Balance Charger
1* Tool kit
