Product description
[32919959000]Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller W/Safety Switch Buzzer SD Card Drone Accessories
Descriptions:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Features:
Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system
14* PWM/ actuator output
Bus interface (UART, I2C, SPI, CAN)
Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control
Provide automatic and manual mode
Provide redundant power input and fault transfer function
Color LED lamp
Multi tone buzzer interface
Micro SD to record flight data
Specifications:
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2* CAN
DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface

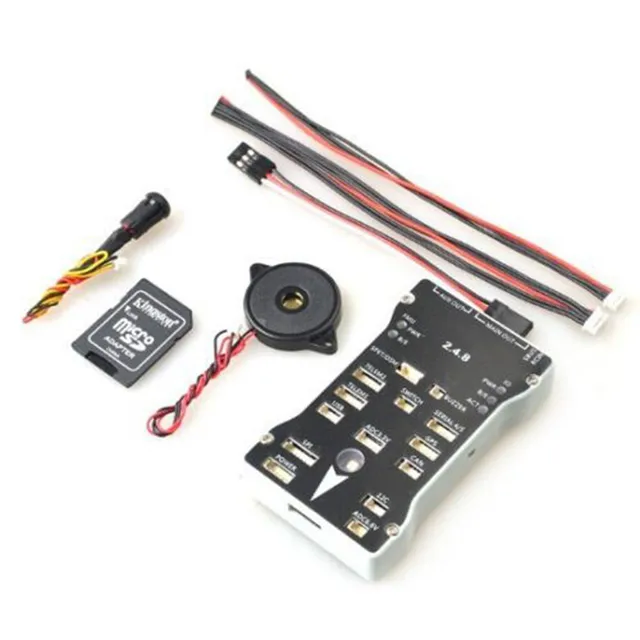

Packing Includes:
1 x 2.4.8 Pixhawk main control
1 x Flight control shell
1 x Safety switch
1 x Buzzer
1 x 6pin to 6pin line
1 x 4Pin to 4Pin line
1 x 3pin DuPont line
1 x 1G micro SD Card
​
