Product description
[32783348316]Note , for the easy shipping ,the goods do not including the charger or the battery , you need buy by seperate

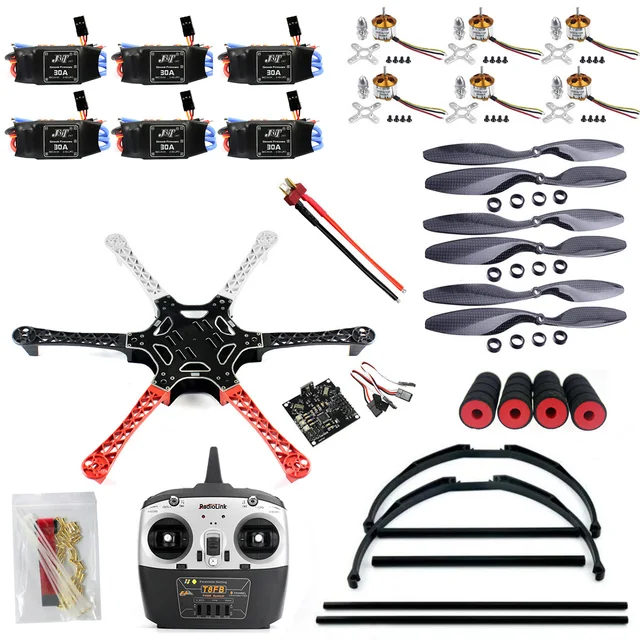

packing including :
1* F550 Hexa-Rotor Air Frame FlameWheel Kit
6*A2212 1000KV Brushless Outrunner Motor W/ Mount
6*JMT 30A Brushless ESC
3*10x4.5 3K Carbon Fiber Propeller CW CCW 1045 1045R CF Props Blade
1*RadioLink T8FB 8CH 2.4G Radio Control System Transmitter Receiver
1*KKMulticopter V2.3 Circuit board Flight Controller V5.5
1*AVR USB USBasp ISP PRGMR Programmer , Firmware Loader USB
1*Universal Tall Landing Skid PTZ
4*65mm Impact Resistance Skid-Proof Sponge Foam Tube Ball
Details:
F550 Hexa-Rotor Air Frame FlameWheel Kit
(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)
A2212 1000KV Brushless Outrunner Motor W/ Mount
JMT 30A Brushless ESC
T8FB Technical Parameters
1. Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm.
2.Weight: 0.47kg(including R8EH)
3.Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
4.Modulation mode: GFSK
5.Channel bandwidth: 400KHz
6.Band width:1200KHz
7.Spread spectrum: FHSS
8.Adjacent channel rejection: >36dBM
9.Transmitter power: <100mW (20dBM)
10.Sensitivity: -104dBM
11.Speed rate:38kbps
12.PWM output: 1.0ms~2.0ms
13.Section precision: 2000, 0.5us per section
14.Cycle:15 ms/per frame
15.Radio T8FB operating voltage: 4.8V~18V
16.Radio T8FB operating current: <110mA
17.Receiver R8EF operating voltage: 4.6~10V
18.Receiver R8EF operating current: <30mA
19.Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.
R8EH Receiver:
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM PWM
signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.
10x4.5 3K Carbon Fiber Propeller CW CCW 1045 1045R CF Props Blade For RC Quadcopter Hexacopter Multi Rotor UFO
65mm Impact Resistance Skid-Proof Sponge Foam Tube Ball
Universal Tall Landing Skid PTZ
