Product description

[32978414123]

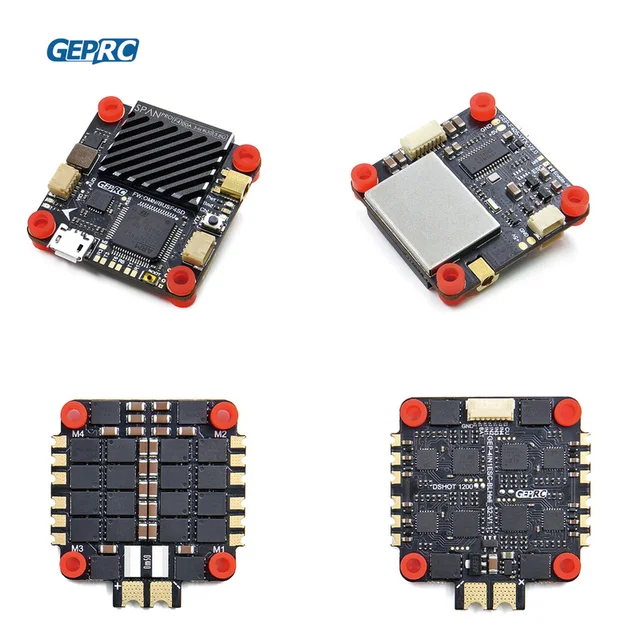

GEPRC SPAN PRO F4 BL32 50A Tower FC 800mW VTX 4IN1 50A BLHeli_32 ESC Board for FPV Racing Drone

Description
Overviews:
I am very pleased to introduce SPAN PRO F4 BL32 Tower, which is mainly upgraded for the ESC adjustment part,Support 6S Lipo Input,Max 8s. The flight control section has been upgraded to V2.0, which fixes some known problems.FPV Quadcopter's electronic equipment is basically integrated into two boards, which can greatly reduce assembly time and better layout of quadcopter.
Features:
Model:SPAN PRO F4 BL32 TowerMCU:STM32F405 168MIMU: MPU6000 gyro/accelerometer (SPI)Con. Current: 50ABurst Current: 55A (5S)Input Voltage: 3-6S Lipo(Max 8S)FC firmware Version: OMNIBUSF4SDESC firmware Version:GEPRC-BL32-4IN1Size: 36x36x14mmMounting holes: 30.5mmInstallation height:14mmCopper thickness:4OZ*4(Power Layer)+2OZ*2Support DSHOT1200/DSHOT600, PWM, Multishot, OneShotChannel:48CH(IRC Tramp default UART3)VTX Power:PIT/25/100/200/600/800mWHigh precision CNC heat sink.On-Board LC Filter for clear video imagesPractical – Easy to access connectorsConfigurable – Choose to use connectorsProfessional – Symmetrical, Neat and Tidy and Easy to install in Most of frame.Toal weight:26g(FC&VTX+ESC)
Specifications:
FC&VTX Board:
Model: GEP-F405-VTX58800-2.0MCU: STM32F405 168MIMU: MPU6000 gyro/accelerometer (SPI)Firmware Version: OMNIBUSF4SDChannel:48CH(IRC Tramp default UART3)VTX Power:PIT/25/100/200/600/800mWOSD: BetaFlightInput Voltage: 3-6S Lipo(MAX 8S)BEC Output:5V@2ASize:36x36mm boardMounting hole: 30.5×30.5mm/Ф4mmWeight:11gIntegrated LC Filter4IN1 50A BLHeli_32 ESC Board:Model: GEP-BL32-50A-4IN1PDB: IntegratedBattery Monitoring: IntegratedCurrent sensor:SupportInput Voltage: 3-6S Lipo(MAX 8S)BEC: NOCon. Current: 50ABurst Current: 55A (5S)Support DSHOT1200/DSHOT600, PWM, Multishot, OneShotFirmware Version:GEPRC-BL32-4IN1Mounting hole: 30.5×30.5mm/Ф4mmSize:36*36mmCopper thickness:4OZ*4(Power Layer)+2OZ*2weight:15g
Include:– 1 x FC&VTX Board– 1 x ESC board– 1 x Antenna– 1 x Capacitor– 1 x MMCX Antenna for easy replacement and upgrades– 1 x 4pins JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)– 1 x 4pins JST-SH sockets with BUZZER & WS2811 RGB LED– 1 x 4pins JST-SH socket for Video and Audio transmission– 1 x power wire XT60
