Cheap Price RC Quadcopter 4 axle Drone ARF Kit No TX RX : KK V2.3 Flight Control A2212 1000KV Motor 30A ESC Lip with Free Worldwide Shipping!
4.74
Related Products :
Plastic Tighten Thomb Knob Bolt Nut Screw Wrench Spanner Tool w/ Safety Rope for Gopro Hero 7 6 5 4 3 3 Plus Camera Mount
JMT 4Pcs/Kit Propeller Guards Protector Prop Blades Protection Cover for DJI TELLO Propeller Drone Quadcopter Accessory
Mini Detachable Tripods Mount Adapter for Gopro Hero 3+ Plus 3 2 Monopod/XIAOYI /XIAOMI + F08817
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photo Studio Accessory
Product description

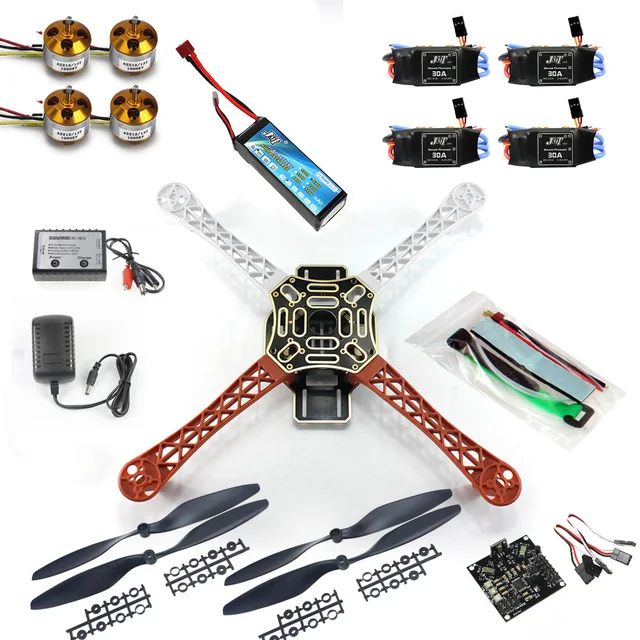

[32643196480]RC 4 Axis Multi QuadCopter UFO ARF/Kit No TX&RX:KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel Total items include:
(Need assembly by yourself for the whole set)
HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit
The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again
Fetures:
by advanced engineering material,super strong & smooth.
High quality and strong ability of anti-fall, lower maintenance cost.
Compact design with small numbers of components, you can assemble it by youself quickly and easily.
Suitable for both beginners and senior .
Excellent quad-copter products.
- Support KK MWC by new disign PCB board(Not Included)
Speicifications:
Color: Red + White + Black
Shaft distance: 17.7in/450mm
- Net weight: 0.65lb/282g - by advanced engineering material,super strong & smooth- Kit(need you assemble yourself)
KKMulticopter v5.5 Circuit board V2.3 + Programmer Firmware Loader USB *1 set
For the program method,please contact me:
1. Simple structure, Easy to Maintain and Debug Control 2. Relying on potentiometer adjust gyro sensitivity. 3. Full servo signal output, support normal ESC / analog servo 4. Support for single-axis / UFO, Y3 3-axis, Y4-type 3-axis, 4 axis, 6 axis, V22 flight mode 5. Supports 4-axis "+" and "X" flight mode, support for six-axis "HEXA6" and "Y6" flight mode. FlyCam MultiCopter Controller Blackboard(kkMultiCopter) A 2212 A2212 1000KV Brushless Outrunner Motor W/ Mount *4pcs KV: 1000 Max Efficiency: 80% Max Efficiency Current: 4-10A (>75%) Current Capacity: 12A/60s No Load Current 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: ?27.5 x 30mm Shaft Diameter: ?3.17mm Weight: 47g/set Including: 1 set 2212 1000KV Brushless Outrunner Motor with Mounts *4 FMT 30A ESC Speed Controller *4 pcs Specification: 1.1 Output: Continuous 30A, Burst 35A up to 10 Secs. 1.2Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery. 1.3BEC:2A / 5V (Linear mode). 1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor) 1.5 Size: 45mm (L) * 24mm (W) * 11mm (H). 1.6 Weight:22g. Features 2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters. 2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium Reset: resetall the programmable items totheir default settings. 2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection. Advantages 3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is helpful for getting a super current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability. 11.1V 20C 2200Mah Lipo Battery *1 pcs Specification: Output:11.1V(3S1P)2200mAhWeight About:193g This Li-poly battery features high efficient and high discharge,use a inspection machine to match packs, suitable for All Align trex 450 rc heli and other professional model airplanes, cars, and guns. Max Continuous Discharge: 10C, Burst Discharge: 15C. Normal operating temperature is approx. 40-65C(within 80% of rated discharge). Max. temperature: 80C. NOTE:When using high energy Li-poly Battery, please do not over-discharge, over-charge batteries, or result over-high temperature. Discharging capacity can\'t exceed 80% of the max capacity after full charging to ensure a good cycle performance. Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.2V). Do not use the battery at insufficient of voltage. Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35C in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens. Tarot 1045 5mm Efficient/Hardness Blade Propeller TL2710-01/TL2710-03 (2 pairs) (For the color of propeller,we will ship random color according to our invertory) (assembly required buyers) F02192-B RC 4 Axis Multi QuadCopter UFO ARF/Kit No TX&RX: HJ 450 450F Nylon Fiber Flamewheel Frame *1 A2212 1000KV Motor installed base*4 30A ESC*4 V2.3 Circuit board*1 Programmer Firmware Loader USB*1 1045 Propeller*2 pair
11.1V 2200mah 20c lipo battery *1 Relate wire Charger+adapter * 1 set
(If you have request for the plug of the adapter,please leave message or contact us before purchase,or we will ship according to common sense,the charger and adapter\'s style sometimes is different from the picture shows,function same,if you mind,please contact us before purchase,it\'s my pleasure to serve you!) Provided by user\'s power Equipments (This price does not contain the following components): 4 channel ? transmitter& receiver
Shipping: 1 The shipment is depend on your choice.2Instruction:the weight and size we marked in the package details is not the actual weight and size of the goods, if you need to know the actual weight and size, you just need to contact us.3 Delivery time:1) Transportation developed countries is about 7-45 days2) Remote countries is about 2-8 weeks4 If buyer want to use more faster shipping method, like DHL etc, please communicate with us about the increase shipping.5 Instruction:The shipping time is depends on the buyer's customs clearance time or Force Majeure. If buyer does not receive the goods in a long time, we hope buyer can contact your customs or local post office, in order to get goods soon.
