Special Price JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DI with Free Worldwide Shipping!
4.84
Related Products :
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photography Accessories
XILETU XJ-8 Tripod phone tripod mount Head Bracket Mobile Phone Holder Clip For Phone Flashlight Microphone With Spirit level
JEYI VolleyStar-PRO Black Heat Sink Heatsink M.2 NVMe SSD NGFF TO PCIE X4 Adapter MKey Port Card PCI-E 3.0 x4 Full Speed RGB LED
Aluminum L-type Adjustment Tighten Locking 7-shaped Handle Screw M5 M4 Adjustable Screws DSLR Camera Photographic Parts
Product description
[32792154199]JMT Pro 2.4G 10CH 960mm RC Hexacopter Drone Tarot X6 Folding Retractable PIX PX4 M8N GPS ARF/PNF DIY Unassembly Kit Motor ESC
Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.
If any Technical questions, Please message us but do not open dispute or leave negative feedback.
2Versions optional, The difference devices arethe Configuration of ESC .
1) Hobbywing XRotor Pro 40A ESC No BEC;
2) 40A Brushless ESC Speed Controller .
Note: The item do not include Battery!
We recommend that client to ready the14.8-22.2V 4-6s 8000-15000mahbatteries

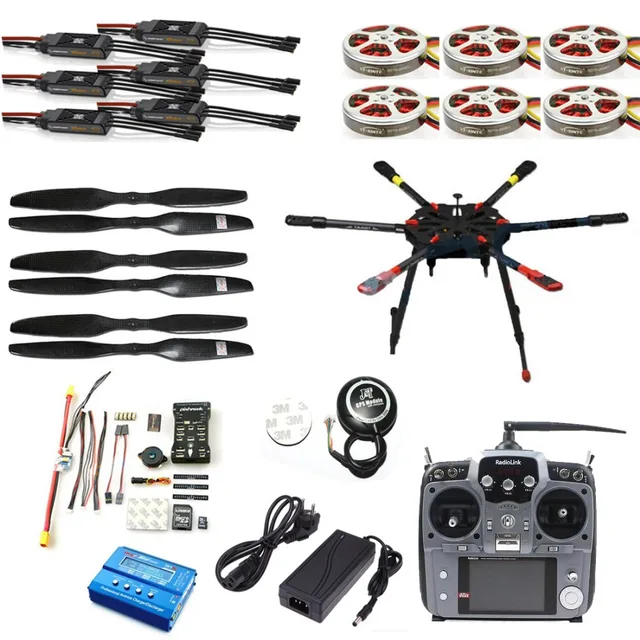

Package listing: 1x TAROT X6 Hex-Copter FPV Kit TL6X001 with Retractable Landing Skid 6x 350KV Brushless Disk Motor high Thrust With Mount
3xTarot 18x5.5 3K Carbon Fiber Propeller CW CCW 1855 Props TL28228
6xHobbywing XRotor Pro 40A ESC NoBEC(Hobbywing 40A ESC set)OR40A ESC(JMT 40A ESC set)
1x Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 Bit ARM
1x Mini M8N GPS Module NEO-M8N GPS 1x RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver 1x SKYRC Imax B6 60W Mini Professional Balance Charger 1x 12V5A AC 100-240V Converter Adapter (US/AU/UK/EU Plug optional)
1x Tool Set (Bag)
Frame:
Symmetrical motor wheel base: 960mm Propeller: 18inch Single arm length: 392mm Single arm weight: 113g Main plate diameter: 328mm Net height of landing skids: 395mm Battery: 15C/22.2V/10000-2000mAh ESC: 40A/6S Max power:4000W Hovering power: 1800W Hovering time: 18 Min Working temperature: -10 40 Net weight: 2.0Kg Gross weight: 2.7Kg
ESC:
---------------------Hobbywing-------------------------
Item Name : Hobbywing XRotor-Pro-40A Con.Current : 40A Peak.Current (10s) : 60A BEC: No Lipo : 3S-6S Parameter Option : DEO ( on/off ) Size and Weight : Version A ( With Wire ) : 66x21.8x11mm ; 50g
1. Output: Continuous 40A, Burst 60A up to 10 Secs. 2. Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery. 3. BEC:Pentium-40A: 3A / 5V (Switch mode). 4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor) 5. Size: 55mm (L) * 28mm (W) * 12mm (H). 6. Weight: Pentium-40A: 35g.
Motor:
1, the use of a hidden motor shaft design, more effective protection of the motor shaft. 2, the use of a new type of propeller design, performance is more stable, demolition is more convenient. 3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency. Excellent workmanship, quality assurance, energy saving high efficiency KV:350 KV Shaft diameters: 4 mm Weight:about 105 g (with leads)
RemoteControl System: 1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz); 2.Modulation mode: QSPK; 3.Channel bandwidth: 5.0MHz; 4.Spread spectrum: DSSS; 5.Adjacent channel rejection: >38dBM; 6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing); 7.Operating Voltage: 8.6~15V; 8.Operating Current: <95mA; 9.Control distance: 800 meters ground; 10.Channel: 10 Channel,8~10 channel are customizable; 11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model; 12.Simulator model: under the simulator
Flight Controller:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; - Provide redundant power input and fault transfer function; - 14* PWM/ actuator output; - Bus interface (UART, I2C, SPI, CAN); - Provide automatic and manual mode; - Color LED lamp; - Multi tone buzzer interface; - Micro SD to record flight data;
Charger:
Operating voltage range: 11.0-18.0 Volt Circuit power: Max .charge power 60W Max .discharge power 5W Charge current range: 0.1-6.0A Discharge current range: 0.1-2.0A Li Po/Li Fe/Li Ion Cells : 1-6S NICD/NIMH cells: 1-15s PB battery voltage: 2V- 20V Net weight: 233g Dimensions: 10.2×8.4×2.9cm
Caution for the battery: Don't over-charge, or over-discharge batteries. Don't put it beside the high temperature condition. Don't throw it into fire. Don't throw it into water.
Version with HobbyWing 40A ESC
Version with 40A ESC
​
