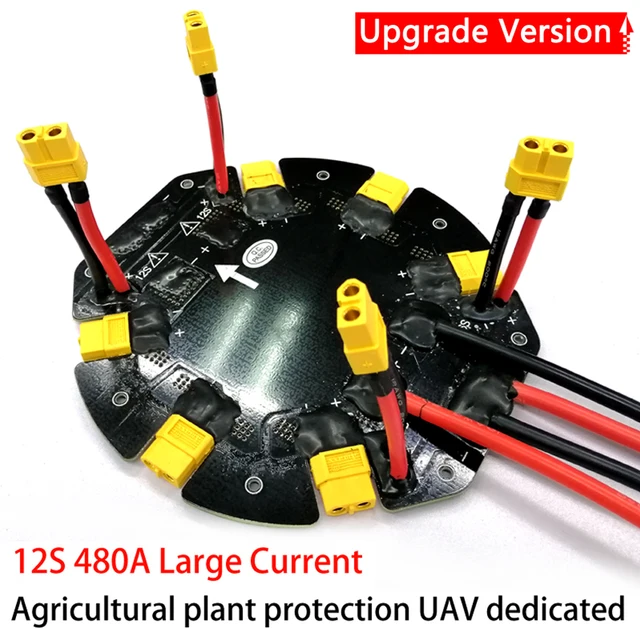

Cheap Price 12S 480A Large Current Power Distribution board Module PDB for Agricultural Plant Protection Drone with FREE Worldwide Shipping!
4.38
Related Products :
X4-10 10KG 10L professional quadcopter agricultural drone carbon fiber frame kit spraying UAV drone PK DJI AGRAS MG-1S
Lens Camera Protector for DJI Mavic Pro Sun Shade Glare Shield Gimbal Shade Camera Lens Hood
1pcs Battery Chargers Multi-charging board Fast filling plates for DJI phantom 3 Accessories
1Pair 9450 9.4inch CW/CCW Propellers Self-tightening Professional for DJI Phantom 3 Standard quadrotor
Product description
[32816531360]Application: four-rotor, six-rotor
Weight: 256g
Size: D150*16mm
ESC Plug: XT60
ESC signal line: rearward
Power supply: 2*6s, 2*12s
XT90 is ESC power supply interface, voltage is 12S.
XT60 1is 6S reserve power, can give an ordinary flight control power supply, but also to other equipment to support 6S power supply.
XT60 2is 12S reserve power, this circuit cannot be used as the ESC power supply interface. Can be accessed by step-down module or other equipment supporting 12S voltage.
CAN NOTbe given to the power supply range of 3S-6S ordinary flight control power supply, otherwise it will burn the flight control!!
When install, note that the arrowheads must be aligned with the head.
ESC signal integration interface is divided into front and rear; need to choose according to different flight control.
Support four-axis and six-axis two models, according to different models in accordance with the identification of wiring.
The main power cord recommended welding AS150 plug is divided into positive and negative all the way to the left and the right and negative all the way, cannot be mixed.
