US $195
Original Price : US $195 (0%)
Cheap Price Full Kit DIY GPS Drone RC Carbon Fiber Frame Multicopter FPV APM2.8 1400KV Motor 20A ESC 2.4GFS-i6 with FREE Shipping Worldwide!
4.80
Related Products :
Plastic Tighten Thomb Knob Bolt Nut Screw Wrench Spanner Tool w/ Safety Rope for Gopro Hero 7 6 5 4 3 3 Plus Camera Mount
JMT 4Pcs/Kit Propeller Guards Protector Prop Blades Protection Cover for DJI TELLO Propeller Drone Quadcopter Accessory
Mini Detachable Tripods Mount Adapter for Gopro Hero 3+ Plus 3 2 Monopod/XIAOYI /XIAOMI + F08817
M4 M5 M6 Hand Tighten Screw Aluminum Alloy Handle Adjustable Screws DSLR Camera Photo Studio Accessory
Product description
[32807967791]Full Kit DIY GPS Drone RC Carbon Fiber Frame Multicopter FPV APM2.8 1400KV Motor 20A ESC 2.4GFS-i6 Transmitter
Specifications:
frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
general configuration 5"-10" propeller (Not inclued)
Personality Across Design
,Material:Carbon Fiber Frame kit
Frame reference:
Motor: MT2204 or MT2206 (Not included)
Propellers: (Not included)
2204 motor use FC 5"-6" blade
2206 motor use FC 5" 6" 8" blade
ESC: 15A-20A (Not included)
Voltage: 11.V-11.8V (Not included)
Weight about: 200g
Motor:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g
ESC:
Features:
1.1 Rotor dedicated program, fast throttle response, beyond the various types of open source software;
1.2 Specifically optimized firmware disc motor, the motor has a very good compatibility;
1.3 Highly intelligent, adaptive ability, extremely easy to use;
1.4 Throttle signal line is a twisted pair, copper wire to reduce crosstalk signal generated within the transmission, so that more stable flight;
1.5 Supports up to 621Hz refresh rates up to the throttle signal, compatible with a variety of flight control (Note: More than 500Hz signal of the throttle throttle are all non-standard signal)
1.6 Use MOSFET special driver chip, performance and stability far beyond the driving circuit with discrete components built
1.7 Ultra-low resistance MOSFET, strong resistance to current capacity;
1.8 Exquisite plastic case back with high brightness LED navigation lights
1.9 Power transfer comes on the back of the micro DIP switch for setting LED navigation lights on / off, LED light color, into the steering angle and the motor.
Transmitter Specfications:
Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4 (Not included)
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Weight: 392g
Online update: yes
Color: black
Receiver Specifications:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4--2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RX sensitivity: -105dBm
2.4G system: AFHDS 2A
Code type: GFSK
Antenna length: 26mm
Input power: 4.0-6.5V DC
Dimension: 40 * 21 * 7mm
Weight: 6.4g
Color: Black
i-Bus interface: No
Data acquisition interface: No
Package information:
Package size: 23 * 21 * 10.5cm / 9.1 * 8.3 * 4.1in
Package weight: 680g / 1.5lb

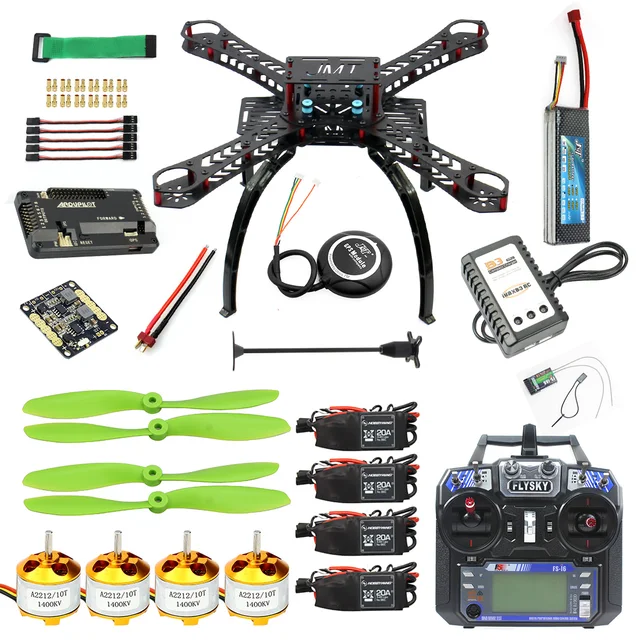

Package listing:
1* Carbon Fiber Alien Across Mini Quadcopter DIY Frame Kit
4* A2212 1400KV Brushless Outrunner Motor
4*
Hobbywing XRotor Lipo 3-4S Long wire 20A Brushless ESC
2* 8045 propeller (pair)
The color of the propeller will ship out according to our inventory,if you have request for it,please leave message in the order or confirm with us before purchase,thanks
1* CC3D Flight Controller Power Distribution Board
1 *APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass1 * 6M GPS with Compass L5883 25cm Cable
5 * 10cm Servo Extension Lead Wire Cable MALE TO MALE
1* GPS Folding Antenna Mount Holder
1* Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter iA6 Receiver
1* 11.1V 3300Mah 25C Quad aircraft with 3S lithium battery
1* IMAX RC B3 Pro Compact Balance Charger
1* Tool kit
