Special Offer Full Set DIY Mobula 7 V3 FPV Drone Crazybee F4 PRO FC V3 Frame VTX SE0802 Motor Turbo Eos2 Camera f with Free Shipping Worldwide!
4.35
Related Products :
3D Printed Camera Mount Holder Fixed Mount For iFlight iX5 V3/XL V3/V4 For Gopro 5/Hero 4 Session FPV Racing Drone Accessories
1 Pair 2 PCS 4-Propeller Props CW/CCW For DIY RC Racing FPV QAV R QAV 210 250 280 320 Martian 230 255 Quadcopter Drone Accessory
Hot New 2 Pair 2030 1.5mm Hole 2 Inch 3- Propeller Bullnose Prop For 1102 1104 1105 Motor
9443 Props CW + CCW Propellers with Self-locking Screw Nuts for DJI Phantom V2 1 2 3 Drone Accessory
Product description
[32968340369]If buyer needs us to weld the flight control with camera, VTX, buzzer and so on, please buy th service of Welding fee.
Features: - New Crazybee F4 PRO Flight controller 1-2s Lipo compatible - 2S whoop more powerful and more flight time - Betaflight support , multi flight mode: ACRO/AIR/ANGLE - New 0802 Powerful and High efficiency Brushless motor and Smooth ESC - Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible - Flysky version support both AFHDS and AFHDS-2A protocol transmitter - DSM-2/DSM-X version support DSM-2 and DSM-X compatible Spektrum transmitter
Flight controller:
CRAZYBEE F4 PRO Firmware target: CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
ESC MCU Upgraded to EFM8BB21
Built-in Betaflight OSD(SPI Control)
Built-in Current metersensorMaxup to28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Multi Serial port support
Fully compatible with almost Brushless whoop drone
Weight:4.2g
Onboard 4in1 ESC:
MCU upgraded toEFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600
Receiver support:
No RX version:
support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm-2/DSM-X, Ibus protocol etc.
Built-inDSM-2/DSM-Xreceiver Version:
Serial bus receiver
Protocol: DSM-2/DSM-X compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Built-inFrskyNON-EUreceiver Version:
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Built-inFlyskyreceiver Version:
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support

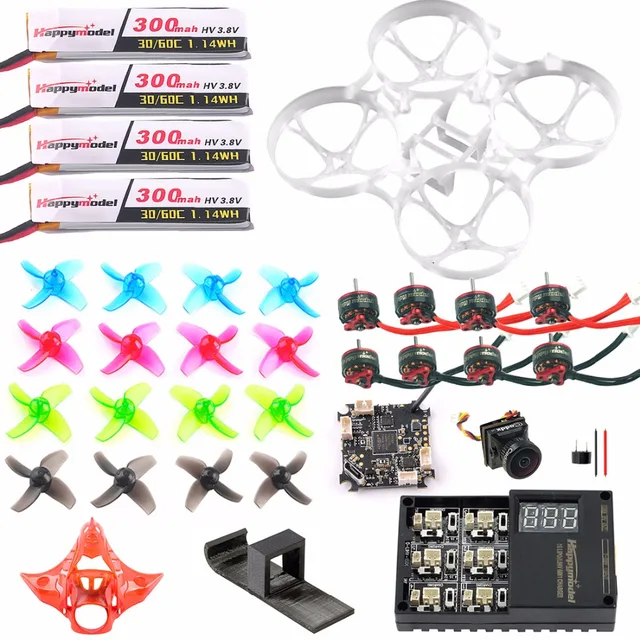

Package include:
1xMobula 7 4-blade props Blue (4pcs/set)
1x Mobula 7 4-blade props Black (4pcs/set)
1x Mobula 7 4-blade props Green (4pcs/set)
1x Mobula 7 4-blade props Pink (4pcs/set)
1xMobula7 V3 Frame (White)
4 or 2 xSE0802 1-2S CW Motor with Red Cable(16000kv )
4 or 2 xSE0802 1-2S CCW Motor with Black Cable(16000kv)
1xCrazybee F4 PRO Flight control
1xMobula7 V2 Canopy
1xBattery Holder
1x(Caddx.us)Turbo Eos2 Camera 2.1mm 4:3 NTSC(If you need other version,please inform us in advance)
4xMobula7 3.8V 300mah Battery
1xMobula7 3.7V 3.8V 1S06 6-Way Charger
1xBuzzer
1X5.8g 40ch 25mw~200mw switchable VTX
