US $340.48
Original Price : US $374.15 (9%)
Discount Price F08618-S DIY FPV Drone 6-axle Hexacopter Kit HMF S550 Frame PXI PX4 Flight Control 920KV Motor GPS with FREE Worldwide Shipping!
4.41
Related Products :
F08618-V DIY FPV Drone Hexacopter 6-axle Aircraft Kit HMF S550 Frame PXI PX4 Flight Control 920KV Motor GPS 9343 Propers 30A ESC
RCA Cable 2RCA to 3.5 Audio Cable 3.5mm Jack RAC Aux Cable 1m 2m 3m 5m For Phone Edifer Home Theater DVD 2RCA Audio Cable
Self Selfie lock Clip Stick Handheld Monopod Adjustable Buckle Phone Holder Adapter for Gopro HERO 5 4 3+ Action Camera
F13157 Bicycle Saddle Rail Seat Lock Mount Stabilizer Aluminium for GOPRO Hero 1 2 3 3+ 4 5Session/Xiaomi Yi/SJ4000/GitUp Camera
Product description
[32636759063]F08618-SDIY FPV DroneFull Set Hexacopter 6-axle Aircraft Kit HMF S550 Frame PXI PX4 Flight Control 920KV Motor GPS Gimbal AT10II Transmitter 30A ESC 9443 PropersGPS Folding AntennaB3 Pro Compact Balance Charger 11.1V 4400MAH 30C 3S1P battery (assembled)

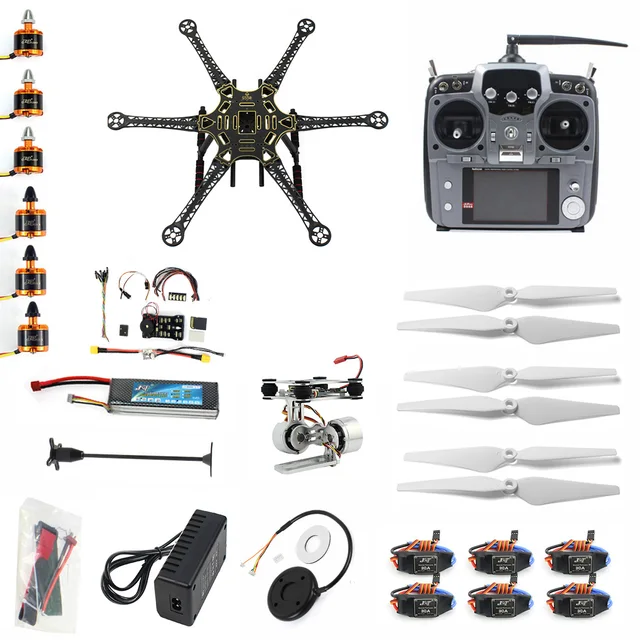

Package including:
1 set HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear
3 Pair JMT 920KV CW CCW Brushless Motor
6 pcs 30A Brushless ESC Speed Controller
3 pair 9443 CW CCW Propellers
1 pcs PIXHAWK PIX PXI PX4 Flight Controller
1 pcs 6M GPS with Compass L5883 25cm Cable
1 pcs DJI GPS Folding Antenna Mount Holder Metal
1 pcs RadioLink AT10II 2.4GHz 10CH Remote Control System
1 pcs Aluminum 2-axle Brushless Gimbal Camera Mount Controller Plug&Play
18 pcs 3.5mm Bullet Connector ( banana plug )
1 pcs Hook & Loop Fastening Tape
1 pcs T Plug Male Connector
1 pcs IMAX RC B3 Pro Compact Balance Charger
1 pcs 11.1V 4400MAH 30C 3S1P battery
This ESC do not have the English instruction.Before producing, the manufacturer have set up the program, the ESC do not need additional program.Simonk Firmware 30A ESC Electric Speed Controller with 5V 3A BEC for 2 to 4s Lipo Battery
Newest 2.45 32bit Flight Control Set PIX PXI PX4 Multi-axis Aircraft Fixed-wing Drones APM Upgraded
Hardware Specifications:
processor1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit2. frequency: 168MHZ, 256K RAM3.32 STM32F103 backup coprocessorsensor1.L3GD20 3-axis digital gyroscope 162.LSM303D 3-axis accelerometer 14 / Magnetometer3.MPU6000 6-axis accelerometer / magnetometer4.MS5611 precision barometerinterface1.5 high voltage compatible UART 1, 2 with hardware flow control2.2 CAN3.DSM / DSM2 / DSM-X satellite receiver compatible input4.Futaba SBUS compatible inputs and outputs5.PPM Signal Input6.RSSI (PWM or voltage) Input7.I2C8.SPI9.3.3 and 6.6VADC input10. External MICRO USB Interface
JMT Golden Color920KV CCWCWBrushless Motor for DIY 3-4S Lipo RC Quadcopter F330 F450 F550 DJI Phantom Cheerson CX-20 Drone Description:Outer diameter: 28.0 mmHeight: 24.0 mm (Without Shaft)K V: 920kv
RadioLink AT10II 2.4Ghz 10CH RC Transmitter w/ R10D Receiver PRM-01 Voltage Return Module Mode 2 for RC Helicopter Quadcopter Note: orange and black colour, which colour you need, please leave us a message, or we will ship you random colour.thanks.
HMF S550 RC Hexacopter Frame Kit + Landing Gear 6-axle FPV F550 Flamewheel Upgrade
Features:- Adopts S800 upward tilt arm design- Plastic injection moduling, ensures hardness and lighter weight- Brushless gimbal compatible for FPV (Not included)Specifications:- Wheelbase: 528mm- Weight: 550g/720g(without/with gimbal)- Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900- Prop suggest: 8038 9047 1038 1045 1047- Battery suggest: 3S-4S 2200mAh-5200mAh
