US $100.62
Original Price : US $111.8 (10%)
Special Price Holybro Kakute F7 AIO Flight Controller+Tekko32 35A BLHeli_32 ESC Dshot1200 2-6S for RC Drone with FREE Shipping Worldwide!
4.32
Related Products :
JMT Aluminum 25T Metal Servo Arm With Screws for Futaba Savox Xcore Power HD Servos
RF Connecting Line High Frequency Wire Jumper 8cm Coaxial Cable Connector FPV Antenna Extender Cable SMA plug TO RP-SMA jack Ad
New MG996R motor durable Servo digital metal gear for Futaba JR automotive RC helicopter
5pcs/10pcslot New 9G Micro / Mini Servos + Horns For rc Helicoper Airplane better than Servo SG90 for RC 250 450 Helicopter Car
Product description

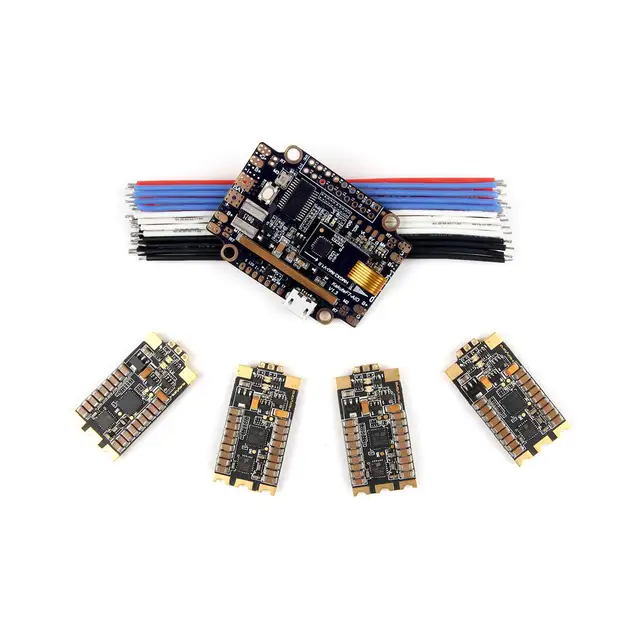

[32996678966]Holybro Kakute F7 AIO Flight Controller+Tekko32 35A BLHeli_32 ESC Dshot1200 2-6S for RC Drone Specification: Kakute F7 AIO Flight Controller: Brand name: Holybro Item name: kakute F7 AIO MCU: STM32F745 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280 Current Sensor: Approximately 130 amps maximum measurable value USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7) All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”. Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. TF card for Blackbox logging Dimensions: 35x48x7mm (includes foam-mounted gyro board in height) Mounting Holes: Standard 30.5mm square to center of holes Weight: 11g Features: • Supports Betaflight, Butterflight, and Cleanflight. • Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles. • Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself. • High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz sampling rate. • Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units. • 2 oz. copper PCB allows up to 120A maximum continuous current. • Dedicated bootloader button for easy firmware flashing. • Low-profile design fits into even very compact frames. • Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only). • Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 AIO monitors voltage directly from the battery power lead. • Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip. • Supports BLHeli pass-through for easy ESC upgrade and configuration.
Tekko32 35A ESC: Brand name: Holybro Item name: Tekko32 35A ESC Lipo input: 2-6S Size: 15*30mm Weight: 5.2g Features: 32bit compatible ESC (Blheli_32) Dshot1200 up to 32kHz Incredibly small size Very low weight Auto timing feature On-Board RGB LED Build in current sensor Smooth response Compatible to Betaflight F3/F4 flight controller
To download the installation package ofBLHeli_32Android APP pleaseclick here. Package included: 1xKakute F7 AIO flight controller 2xvibration-isolating foam 1x FFC 4xTekko32 35A ESC 1x set of the wires
