US $224.39
Original Price : US $224.39 (0%)
Limited Price GEPRC GEP Mark2 Mark 2 Freestyle FPV Carbon Fiber Frame Kit Blheli-s 40A F4 Flight Control 5.8G VTX with Free Shipping Worldwide!
4.60
Related Products :
GEPRC GEP-OX Pika 5inch SPAN F4 Flight Controller 2306 2450kv Brushless Motor 5040 Propeller 40A ESC for Mini Drone BNF 10% off
GEPRC Crocodile 7 GEP-LC7-1080P 7Inch 315mm SPAN PRO F4 BL32 50A Tower 1080P Runcam Split 2S Long Rang FPV RC Racing Drone BNF
Tarot-RC TL4A02 RFT racing drones the most cool FPV
HAKRC Betaflight F4 Flight Controller OSD Intergrated PDB 4 Pcs 35 2-5S Blheli32 Bit Brushless Racing ESC W/ LED for RC Models
Product description

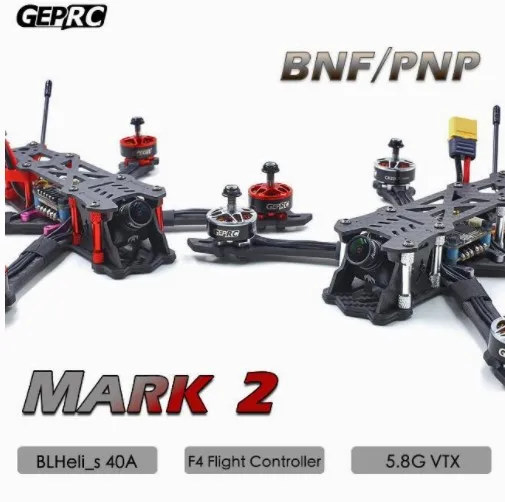

[33011157683]GEPRC GEP Mark2 Mark 2 Freestyle FPV Carbon Fiber Frame Kit Blheli-s 40A F4 Flight Control 5.8G VTX
Description
Summary:
Mark 2 is one of the most popular freestyle drone in the world. it's design is following freestyle flying expert Johnny and Mr Steele experience.No matter from the chassis down to the position of lens, antenna. It could be the best choice for freestyle manuver.We specially added red and silver colour for your choice. Moreover, many 3D printing parts are specially designed for antenna for both 2.4G and 5.8G and fitting of rear LED assembly. Colourful LED give you a cool feeling at night flying.
Mark2(BNF/PNP)Include Mark 2 Frame,SPAN F4 40ATower(F405 flight controller, ESC BLHeli_s 40A, VTX 5.8Ghz 0/25/200/600mW),Pagoda2 RHCP antenna, RunCam Swift2 2.1mm camera,Equipped with multiple 3D printing accessories.The overall performance is assembled and debugged by the GEPRC team, which can fly as long as it is on the frequency.
We are offer two version PNP(without receiver) and BNF(with Frsky receiver).
Manual PDF Download
Specifications:
Brand Name: GEPRC
Model: Mark2 BNF/PNP
Wheelbase: 230mm
Firmware: betaflight_3.2.5_OMNIBUSF4SD
Input Voltage: support 2-5S Lipo
Motor:GR2207 2400kv
Propeller:GEP5040*3 (10 pairs)
Weight: 330 grams without battery or props
Receiver: Frsky R-XSR (ONLY BNF INCLUDE)
Frame:GEPRC GEP-KHX5
Carbon:Full 3K carbon fiber Twill
CNC:High precision CNC 7075
Wheelbase: 230mm
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of lens plate:2mm
Thickness of arms plate:4mm
Flight Controller: SPAN F4 Tower AIO
MCU: STM32F405
MPU: MPU6000
ESC: 40A * 4 BLHeli_s (Dshot 150/300/600) support 2~5S LiPo
VTX:5.8GHz (48 Channel) (OFF/25/200/600mW)
You might need the following equipment to fly
Remote control: You can choose: Frsky X9d or something like that
Goggle: Such as FatShak V2 or something like that
Battery: The novice recommends using the 3s 1300-1800mah battery. Professional flying professionals recommend 4s 1300mah-1800mah
Features:
GEP-Mark2 Frame,All 3k carbon fiber board, sturdy and durableUse mature and stable
Mainstream Freestyle frame, mechanical appearance design
Use SPAN F4 Tower AIO fly Tower latest version, function is more optimized – F405 flight controller – ESC BLHeli_s 40A – VTX 5.8Ghz 0/25/200/600mW
he GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew
High efficiency GR-2207 2400kv motor, with GEP-5040 propeller, achieve perfect output
Use the Pagoda2 antenna to determine the image quality
RunCam Swift 2 lens for clarity
Include:
1x Mark2 BNF/PNP Quad
10x GEP5040-3 Propeller
5x Battery strap
1x Spare Arms
2x Carbon fiber A side plate (with video mount)
1x 3D printing a mount (Red or black)
4x 3D Arm Guards (Red or black)
2x Pagoda2 RHCP SMA Antenna(1pcs installed)
1x Frsky R-XSR Receiver(ONLY BNF)
