Product description

[32987454083]

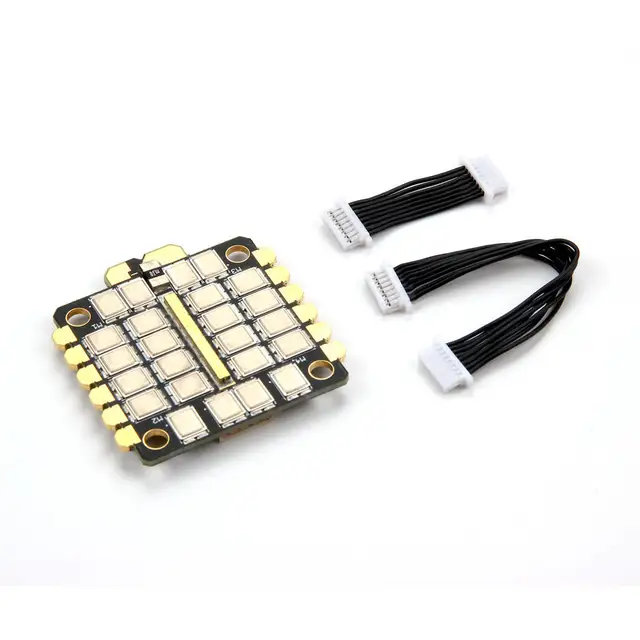

Holybro Tekko32F3 Metal 65A BLheli_32 4-6S 4in1 ESC DShot1200 w/ F3 MCU & Current Sensor for FC Drone FPV Racing





Introducation:


NewBLHELI32ESCwithF3MCU,givemoresmoothcontrolandfasterrespondingspeed.usingmetalcasemosfetforbetterHeatdissipation.


Wetestedinshorttimeon220Aintotal.Theactualperformancewillonlylimitedbytheairflow.

Related: EFT E410 Rack Distribution Board High Current V4 Distributing Module w/ AS150 Plugs For DIY Agricul

Specification:


Brand Name: Holybro


Model:Tekko32F3 Metal


Item Name: 65A BL_32 32Bit DShot1200 4 in 1 ESC






Con. Current: 65A






Peak Current: 80A






Input Voltage: 4-6S Lipo Support

Related: EFT Large Current Power Distribution Board PDB Management Module 12S 480A BackwardF for DIY Agricul

Ext. cap needed for 6s (470uf 35v for 6s usage)






- F3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108Mhz






Size: 42x42mm


Mounting Hole: 30.5x30.5mm






Weight: 12g





Notice:

Related: 12S 480A Large Current Power Distribution board Module PDB for Agricultural Plant Protection Drone

1. The air flow is very import if you want to run this 4in1 in high current.


2. The input cable(from lipo to 4in1), should be good soldered, and at least 12AWG


3. Pleaseuse non-metallic isolation standoffs(marked in red in the diagram above) for the mounting holes on the ESC.


Because mounting holes and motor pad are connected.





Features:


- The 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)


- Using metal case mosfet for better Heat dissipation


- BLheli_32 firmware, support Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200





Package Included:

Related: For DJI Mavic Pro Platinum Drone 5in1 5.7A Large Current Battery Controller Phone Tablet Charger Ra

1x Tekko32 F3 Metal 4in1 ESC









1x 470uF 35VElectrolytic Capacitor









1x 8pin to 8pin 1mm pitch 65mm Cable









1x 8pin to 8pin 1mm pitch 25mm Cable
