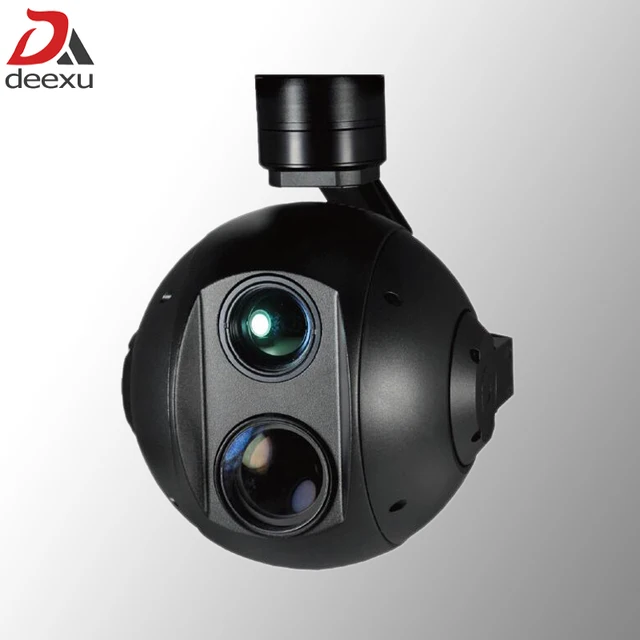

Best Offer Dual sensor UAV Drone Gimbal Camera infrared thermal imaging camera and 30x zoom HD starlight camer with Free Worldwide Shipping!
4.41
Related Products :
Dual sensor UAV Drone Gimbal Camera 50mm lens infrared thermal imaging camera and 30x zoom HD starlight camera
UAV Drone Object tracking Night Vision infrared thermal imaging camera with 10x zoom HD starlight camera
UAV Drone infrared thermal imaging camera 18x optical zoom gimbal camera with 50Km Video Transmitter Receiver
UAV Dual sensor Gimbal Camera Drone infrared thermal imaging camera and 30x zoom HD starlight camera
Product description
[32883991475]Compatible withmost of industrial drones,DJI M600 UAV.
Used for public security, night patrol,fire prevention, electric power inspection, etc.
SONY EV7520 30x Starlight Camera
Imager sensor
1/2.8-typeExmor R CMOS
Lens
30x zoom 4.3 ~129 mmF1.6 to F4.7
Digital zoom
12x (360x with optical zoom)
Minimum illumination
Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio
More than 50 dB
Backlight compensation
YES
High Definition
1920x1080P(Full-HD)
Minimum object distance
10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Video Output
HDMI/SDI/SD Card/RJ45
25mm Thermal Imager
Detector
Uncooled long wave (8μm~14μm) thermal imager
Detector pixel
640X480
NETD
≤50mK (@25℃)
MRTD
≤650mK(@characteristic frequency)
Color palette
Black, white, pseudo color
Gimbal Description
Power Consumption
Quiescent 400mA@12V, Working 500mA@12V
Pitch angle range of action
-90°~+90°
Roll angle range of action
-85°~+85°
Yaw angle range of action
-170°~+170°
Angle jitter
pitch and roll direction±0.01° ,horizontal direction±0.01°
Size
L164.5*W127.6*H173.5mm
Weight
1400g
Object Tracking Function
1.Function description
B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display. 2.Tracking Performance 1 ) U pdate rate of deviation pixel 50Hz 2) Output delay of deviation pixel <15ms 3) Minimum object contrast 5% 4) The minimal signal-to-noise ratio (SNR) 4 5) Minimum object size 16*16 pixel 6) Maximum object size 160*160 pixel 7) Tracking speed 32 pixel/frame 8) The mean square root values of pulse noise in the object position<0.5pixel 9) Object memory time 100 frames
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
