Special Price UAV Drone 10x zoom camera gimbal and infrared thermal imaging camera with 15Km Data Image Transmitt with FREE Worldwide Shipping!
4.68
Related Products :
UAV Drone infrared thermal imaging camera 18x optical zoom gimbal camera with 50Km Video Transmitter Receiver
368g Lightweight UAV night vision infrared thermal imaging camera Drone thermo vision camera
Military Grade Scout Search Infrared Thermal Imaging Camera Vehicle Car Advanced Night Vision Camera
Dual sensor UAV Drone Gimbal Camera 50mm lens infrared thermal imaging camera and 30x zoom HD starlight camera
Product description
[33038435817]Compatible withDJI M200/210/200RTK AND Other UAVs.

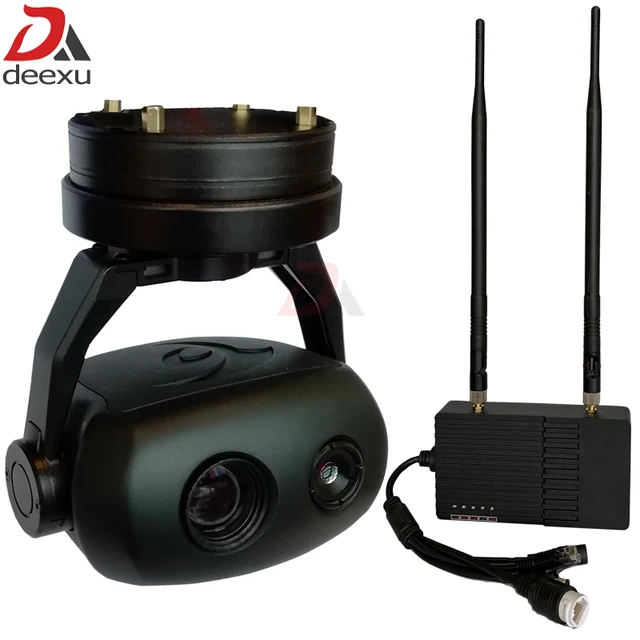

UAV Drone Dual Sensor Camera Gimbal with15Km Data Image Transmitter
Used for public security, night patrol, fire prevention, electric power inspection, etc.
10x zoom HD Starlight Camera
Sensor
1/3 4M Pixes CMOS sensor
Lens
10x Optical zoom,F4.9～49mm
AF Time
Support quick auto focus, timelapse< 1 sec
Video Output
RTSP 1080P 30fps IP output, Local TF record
S/N ratio
More than 50 dB
Backlight compensation
YES
Mode
1080P 30fps
Minimum object distance
10 mm (wide end) to 1200 mm (tele end)
(Default: 300 mm)
FOV
V : WIDE 39.8º±5% TELE 4.2º±5%
6.5mm Infrared Thermal Imaging Camera
Detector
Uncooled long wave (8μm~14μm) thermal imager
Detector pixel
320x240
NETD
≤50mK (@25℃)
MRTD
≤650mK(@characteristic frequency)
Color palette
Black, white, pseudo color
Gimbal Description
Power Consumption
Quiescent 400mA@12V, Working 500mA@12V
Pitch angle range of action
-120°~+120°
Yaw angle range of action
-150°~+150°
Angle jitter
Pitch and roll direction±0.01° ,Horizontal direction±0.01°
Size
L108*W100*H140mm
Weight
490g
Functional Integration: 15Km Data Image Transmitter
Image Transmitter
Developed specially for dual sensor camera pod;
Working frequency: 300~900MHz(customizable);
Modulation method: COFDM 2K;
Video bit rate:3~12Mbps(Configurable);
Working bandwidth: 8MHz;
H.264 encoding;
1080P60 and backward compatible;
Ultra long-distance transmission,5~50km;
HDMI/AV and network camera video are transmitted synchronously;
Short time delay 250ms;
Increase encryption to make transmissions safer.
DataTransmitter
Two-way 2.4G spread spectrum technology SHTT;
Support SBUS/PWM/ serial port transmission multi-function;
16 channels full-featured, Support multiple models,
Real-time data backhaul, 5ms high-speed response mode, 3-15km transmission;
Highlight color LCD touch screen, vibration prompt;
Chinese and English menu.
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
