US $4499
Original Price : US $4499 (0%)

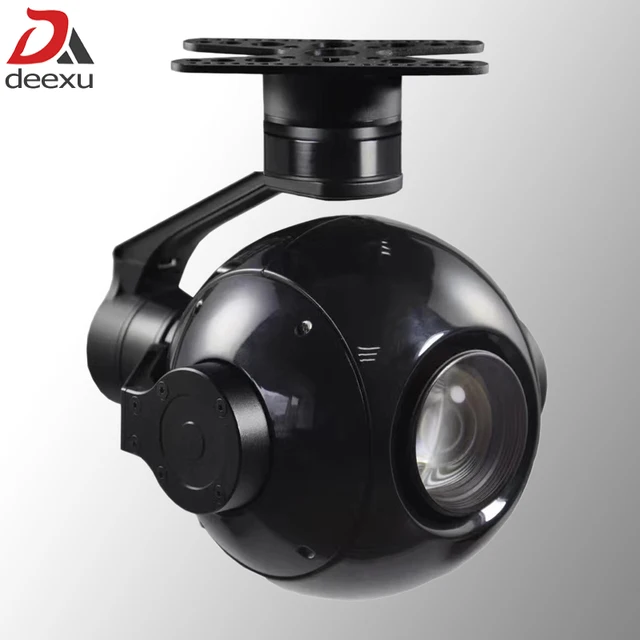

Discount Price Object Tracking Function UAV Gimbal Camera 30x zoom HD starlight aerial patrol Camera Drone PTZ Cam with FREE Worldwide Shipping!
4.59
Related Products :
Lightweight 365g 3 axis UAV gimbal camera 10x zoom 1080P HD UAV Drone camera
UAV Drone laser infrared night vision 30 times zoom HD starlight camera with 3 axis gimbal stabilizer
Dual sensor UAV Drone Gimbal Camera 50mm lens infrared thermal imaging camera and 30x zoom HD starlight camera
UAV Drone Object tracking Night Vision infrared thermal imaging camera with 10x zoom HD starlight camera
Product description
[32881696706]Used for Zoomaerial photography,Drone patrol, Public security, etc.
Compatible withmost of industrial drones,DJI M600 UAV.
SONY EV7520 30x Starlight Camera
Imager sensor
1/2.8-type Exmor R CMOS
Lens
30x optical zoomf=4.3mm to 129.0mm F1.6 to F4.7
Digital zoom
12x (360x with optical zoom)
Picture quality
Full HD 1080p (1920 x 1080)
Minimum object distance
10mm(wide end) to 1200mm(tele end) (Default:300mm)
Minimum illumination
Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio
More than 50 dB
Backlight compensation
Yes
Aperture control
16 steps
Gimbal Description
Power Consumption
Quiescent 330mA@12V, Working 450mA@12V
Pitch angle range of action
-90°~+90°
Roll angle range of action
-85°~+85°
Yaw angle range of action
-150°~+150°
Angle jitter
pitch and roll direction±0.02° ,horizontal direction±0.03°
Size
L144*W151*H158mm
Weight
720g
Object Tracking Function
1.Function description
B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display.
2.Tracking Performance
1 ) U pdate rate of deviation pixel 50Hz
2) Output delay of deviation pixel <15ms
3) Minimum object contrast 5%
4) The minimal signal-to-noise ratio (SNR) 4
5) Minimum object size 16*16 pixel
6) Maximum object size 160*160 pixel
7) Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object position<0.5pixel
9) Object memory time 100 frames
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
About Shipping
By Express(DHL, UPS, EMS, FEDEX, SF, TNT, etc.)By air(airplane),By sea(boat)based on your requirement.
Our Services
1. We provide 2 Years Warranty. Buy with confidence and technical support.
2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back.
Please contact me before you return it.
3. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
4. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to pay the extra shipping fee.
