US $1250
Original Price : US $1250 (0%)

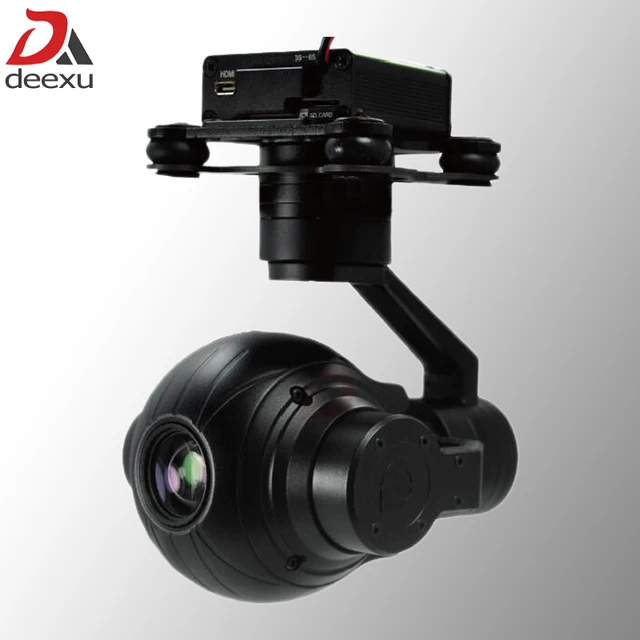

Discount Offer 3 Axis Lightweight 1080P HD 10x zoom Drone Aerial Camera UAV Gimbal Camera with FREE Worldwide Shipping!
4.45
Related Products :
Object Tracking Fixed Wing UAV Drone Gimbal Camera 30x zoom HD starlight drone aerial patrol camera
Lightweight 365g 3 axis UAV gimbal camera 10x zoom 1080P HD UAV Drone camera
368g Lightweight UAV night vision infrared thermal imaging camera Drone thermo vision camera
UAV Drone laser infrared night vision 30 times zoom HD starlight camera with 3 axis gimbal stabilizer
Product description
[32881712898]Used for public security,fire protection, electric power inspection,Zoom aerial photographyetc.
Compatible withmost of industrial drones and DJI M200 models.
10x zoom Full HD 1080PCamera
Imager sensor
1/3 4M CMOS SENSOR
Lens
10x optical zoom, f=4.9 to 49mm
Video Output
1080P video storage, 1080P HDMI output
Picture quality
Full HD 1080p (1920 x 1080)
Minimum object distance
10mm(wide end) to 1200mm(tele end) (Default:300mm)
Minimum illumination
Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio
More than 50 dB
Backlight compensation
Yes
Video Recording
HDMI 1080P 60FPS output,1080P 30FPS Local TF card record.
Gimbal Description
Power Consumption
Quiescent 330mA@12V, Working 450mA@12V
Pitch angle range of action
-90°~+90°
Roll angle range of action
-85°~+85°
Yaw angle range of action
-150°~+150°
Angle jitter
pitch and roll direction±0.02° ,horizontal direction±0.03°
One-click Restore
Support quick return to initial position
Gimbal Speed Adjustable
Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status.
Control Mode
OSD menu setup,Support control by PWM signal and serial port command. Also support digital transmitter command.
Size
L105*W91*H98mm
Weight
409g
Connection of control box and wiring instructions
Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.
Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!
