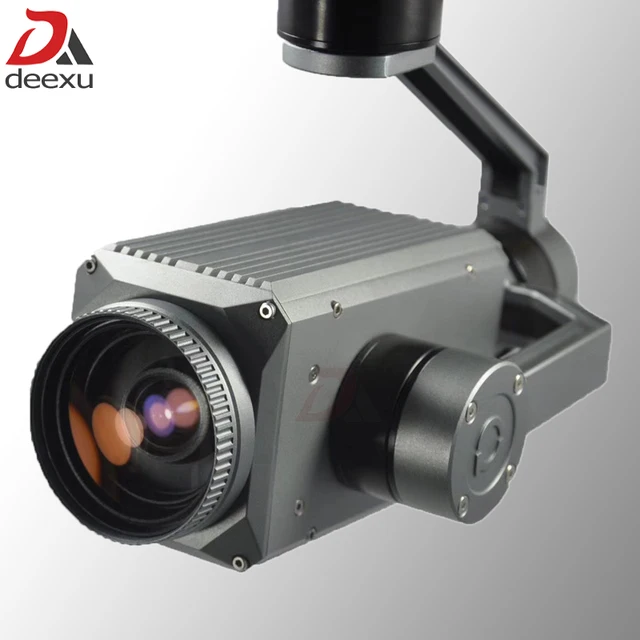

Unmanned Aircraft UAV 3 axis Gimbal Camera 36x zoom 1080P Full HD Starlight Drone Camera


US $4399 Original Price : US $4399 (0%)

Special Offer Unmanned Aircraft UAV 3 axis Gimbal Camera 36x zoom 1080P Full HD Starlight Drone Camera with FREE Shipping Worldwide!


 4.42



Product description

[32884103961]

Used for Zoomaerial photography,Drone patrol, Public security, etc.
Compatible withmost of industrial drones and DJI M600 models.










36x zoom Starlight Camera























Imager sensor









2.38 Mega 1/1.9″CMOS













Lens









36x zoom 5.8 ~210 mmF1. 5~F 4.8 ±3%













Minimum object distance









10mm(wide end) to 1200mm(tele end)(Default:300mm)













Minimum illumination









Colour 0.005Lux F1.5, Black-white 0.0005Lux F1.5













S/N ratio









More than 55 dB













Backlight compensation









Yes













Gimbal Description























Power Consumption









Quiescent 450mA@12V, Working 550mA@12V













Pitch angle range of action









-90°~+90°













Roll angle range of action









-85°~+85°













Yaw angle range of action









-170°~+170°













Angle jitter









pitch and roll direction±0.01° ,horizontal direction±0.01°













Size









L105.5*W188*H151.5mm













Weight









945g






Object Tracking Function
1.Function description
B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display.
2.Tracking Performance
1 ) U pdate rate of deviation pixel 50Hz
2) Output delay of deviation pixel <15ms
3) Minimum object contrast 5%
4) The minimal signal-to-noise ratio (SNR) 4
5) Minimum object size 16*16 pixel
6) Maximum object size 160*160 pixel
7) Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object position<0.5pixel
9) Object memory time 100 frames
Connection of control box and wiring instructions

Camera control line
Zoom:camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus:camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec:photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high:photography/video mode switching
Switch from middle to low:(1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop;(2)In the photo mode: take a pictures.
Multi:Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV:analog output signal.

Pod PWM signal instructions:
YAW directional channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel:speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.

The speed of focusing
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.

More technical support. Please contact us!
