Product description

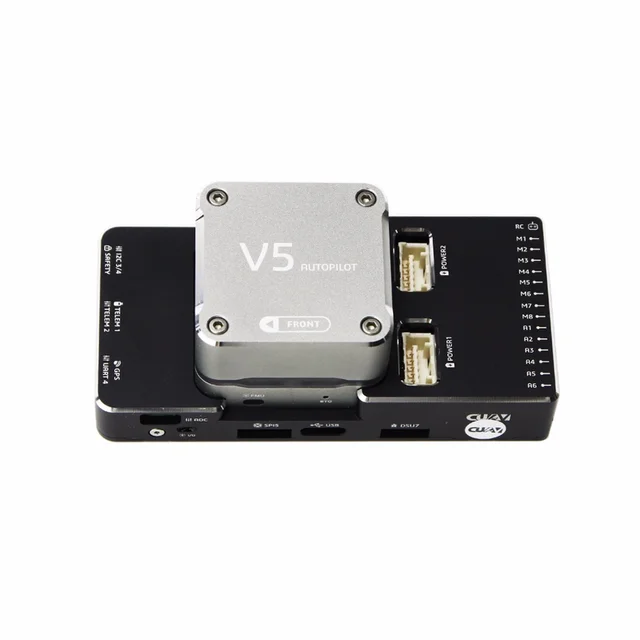

[33052246411]CUAV NEW Pixhack V5 autopilot for FPV RC Drone Quadcopter Helicopter flight simulator free shipping whole saleV5 AutoPilotV5 AutoPilot®is an advanced autopilot designed and made in CUAV®. The board is is based on theFMUv5open hardware design. It is fully compatible with bothPX4andArduPilotfirmware. intended primarily for academic and commercial develop.Quick Summary
Main FMU Processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
IO Processor: STM32F100
32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
On-board sensors:
Accelerometer/Gyroscope: ICM-20689
Accelerometer/Gyroscope: BMI055
Magnetometer: IST8310
Barometer: MS5611
Interfaces:
8-14 PWM outputs (6 from IO, 8 from FMU)
3 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for ppm/DSM and S.Bus
analog / PWM RSSI input
S.Bus servo output
5 general purpose serial ports
4 I2C ports
4 SPI buses
2 CANBuses with serial ESC
Analog inputs for voltage / current of 2 batteries
Power System:
Power: 4.3~5.4V
USB Input: 4.75~5.25V
Servo Rail Input: 0~36V
Weight and Dimensions:
Weight: 90g
Dimensions: 44x84x12mm
Other Characteristics:
Operating temperature: -20 ~ 80°c(Measured value)
PurchaseOrder fromCUAVofficial shop in Aliexpress or contact us by mail for the whole sale priceconnection
DSU7 is a new interface for cuav naming, including fmu swd and uart7 interfaces. When V5 runs PX4 firmware,uart7 is used as the DEBUG interface; when running ArduPilot firmware; uart7 is used as the communication serial port and usb is used to debug the output.The RCIN interface is limited to powering the rc receiver and cannot be connected to any power/load.Voltage RatingsV5 AutoPilotcan be triple-redundant on the power supply if three power sources are supplied. The three power rails are:POWER1,POWER2andUSB.The output power railsFMU PWM OUTandI/O PWM OUT(0V to 36V) do not power the flight controller board (and are not powered by it). You must supply power to one ofPOWER1,POWER2orUSBor the board will be unpowered.Normal Operation Maximum RatingsUnder these conditions all power sources will be used in this order to power the system:
POWER1andPOWER2inputs (4.3V to 5.4V)
USBinput (4.75V to 5.25V)Building PX4 Firmwaremake px4fmu-v5_default uploadBuilding ArduPilotFirmware./waf configure --board fmuv5./waf copter --uploadDebug PortThe system's serial console and SWD interface operate on theFMU Debugport. Simply connect the FTDI cable to the Debug & F7 SWD connector. To access the I/O Debug port, the user must remove the V5-AutoPilot shell. Both ports have standard serial pins and can be connected to a standard FTDI cable (3.3V, but 5V tolerant).Peripherals
Digital Airspeed Sensor
Telemetry Radio Modules
Rangefinders/Distance sensorsSupported Platforms / AirframesAny multicopter / airplane / rover or boat that can be controlled with normal RC servos or Futaba S-Bus servos. The complete set of supported configurations can be seen in theAirframes Reference.Further info
FMUv5 reference design pinout.
V5 AutoPilot docs
CUAV Github
More details check our doc center:http://doc.cuav.net/flight-controller/v5-autopilot/en/Specifications:size: 89*42.5*33mmweight:90gPackge weight: 400g
Package list:PIXHACK-V5 *116G memory card *1HV-PM high voltage voltage and current module + wiring *1PW-link wifi data transmission module + wiring *1Safety switch & buzzer + wiring *1USB to TTL debugging small board + wiring *1USB cable *1CAN wire *2RSSI signal line *1I2C line *2ADC6.6 line *1
