Product description

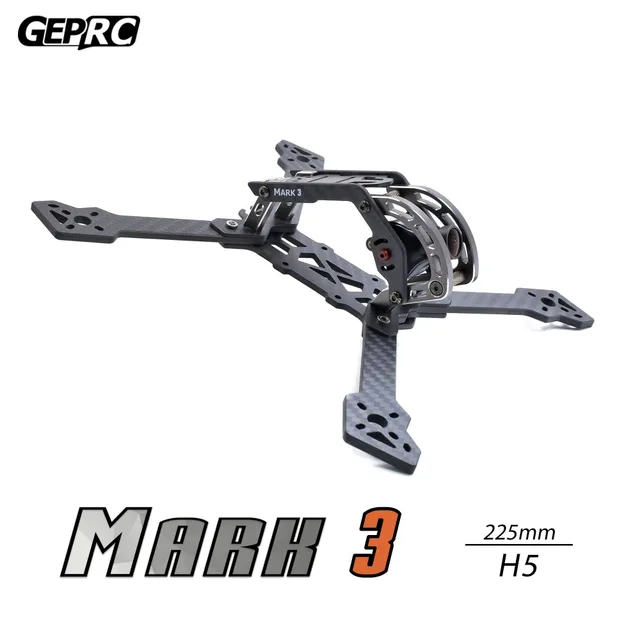

[32978772145]GEPRC Mark3 H5 225mm / H6 250mm Carbon Fiber Frame Kit for Freestyle FPV RC Drone Parts
Summary:
Mark3-h5 and Mark3-h6 is a H-type replaceable arms design.
Mark3 is a comprehensive frame, which has three types of different arm structures, namely, whole unibody design true X-type,replaceable arms h-type and the latest replaceable arms HB (front stretch X and back true X).The new arm structure is a hybrid.The model, which can be controlled more accurately when turning rapidly, will have more advantages.
The structural design of the fuselage USES a combination of carbon fiber plates and aluminum parts,which can act like a car hood flip (quick maintenance and replacement of equipment).The lens protection adopts 7075 aviation grade aluminum as the protection,installation size is 29*29. Position is more compact and the protection is more comprehensive.Movable 5.8g antenna is fixed and installed, which can be adjusted to the right Angle at will.
The appearance design of the model, high precision carbon fiber CNC combined with 7075 grade aluminum, to build a durable structure.
Specifications:
Brand name:GEPRC
Item name:Mark 3-H5
Frame type:H type
Propeller : 5inch
Motor to motor:225mm
Size:159*159mm
Weight:102g
Arms plate : 4mm
Bottom plate:3mm
Side plate : 3mm
Top plate : 1.5mm
Reinforce plate : 1.5mm
Recommended:
Flight Controller:RF/Kiss/F4/F3
Motor: 2205/2206/2207/2305/2306
ESC:20A-50A
Propeller:5inch~6inch
Lipo: 3S 1300mAh ~ 6S 1500mAh
Features:
H type Frame
Beautiful appearance design,durable in crashing
Hood engine room design,Quick maintenance and replacement of equipment
Quick swapping of arms
Ample space for electronic installation
With 25 ° Camera mount
Center Stack Mount 30.5×30.5mm,It is also equipped with a 20x20mm flight controller plate
High quality 3K twill carbon fiber plate, high precision CNC processing,7075 aluminum alloy
YFS screw, 12.9 grade strength, non-slip teeth, anti-rust
Includes:
4 x 4mm 5inch arms plate
1 x 3mm bottom plate
2 x 3mm Side plate
1 x 1.5mm top plate
1 x 1.5mm reinforce plate
1 x 1mm 20*20mm flight controller plate
1 x 1mm receiver plate
1 x 1.5mm Lipo protection plate
1 x 7075 Aluminum Camera Protector
1 x Camera No-Slip Silicone Pad
1 x Lipo foam pad
3 x M3*18.5mm Aluminum alloy standoff Titanium color
4 x M3*14 YFS Button Screw
4 x M3*12 YFS Button Screw
4 x M3*10 YFS Button Screw
2 x M3*6 YFS Button Screw
4 x M3*5 YFS Button Screw
2 x M3*10 Flat Screw
3 x M2*5 Cap Screw
4 x M3 insert nut
4 x FC Rubber damping pad
3 x M2 Gasket red
4 x M3 Nylon nut
6 x M3*5+6 Nylon standoff
2 x 20*220 GEPRC Lipo strap
1 x 2.4g Antenna fixed tube\
