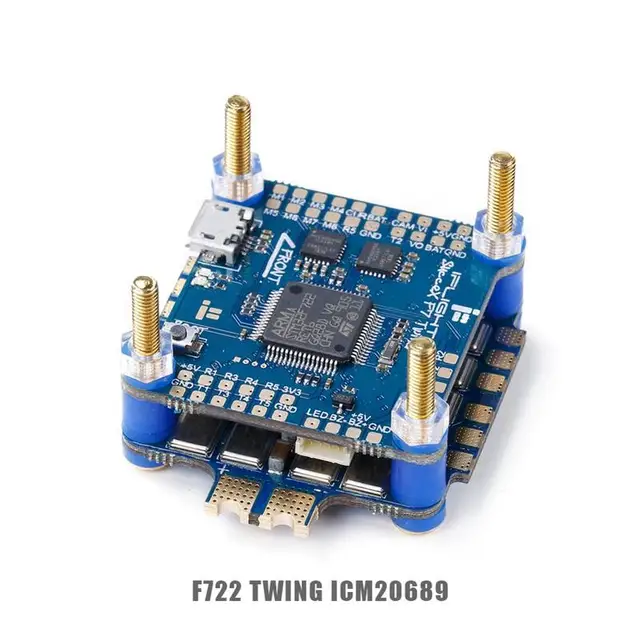

Cheap Offer IFlight SucceX F7 V2.1 TwinG FC with SucceX 60A V2 Plus BLHeli_32 DShot1200 4-in-1 ESC FPV Flytower with FREE Worldwide Shipping!
4.49
Related Products :
Hole 30x30 Side 35x35 PCB ESC Power Distribution Board for DIY RC Mini Quadcopter Multicopter FPV Drone
4pcs Propeller Guard Prop Protection Cover for 90-130 RC FPV Racer Drone 2/2.5 Inch Blade 1102/1103/1104/1105 Brushless Motor
Tarot 380 HC454-S Motor Transmission Belts 304T TL380A4
4pcs Universal Anti Vibration Ball Dampening Rubber Balls Shock Absorber for Quadcopter 4-axis Camera Gimbal GoPro Hero Drone
Product description
[4000161015716]IFlight SucceX F7 V2.1 TwinG FC with SucceX 60A V2 Plus BLHeli_32 DShot1200 4-in-1 ESC FPV Flytower System Stack for FPV DroneDESCRIPTION:
The SucceX F7 V2.1 TwinG/ GYRO FUSION is the NEXT-GEN flight controller you need for your next build. This FC is ready for anything with 5 uartsWith its clean intuitive layout, the SucceX F7 V2.1 TwinG makes installation a breeze with a 4 pin connector for your VTX and an10 pin connector that allows simple plug and play connection with your 4in1 ESC.
But the real magic of this flight controller lies in its TWIN GYRO configuration.
The TwinG uses two identical gyros oriented side by side with one offset 90 degrees from the other. Betaflight uses GYRO FUSION to blend and average the information from both gyros to send a much cleaner signal to the PID loop controller! Less noise and fewer oscillations across the throttle band without adding any delay! Betaflight software filters can be lowered in most cases as well, which brings a significant decrease in delay.
With plenty of processing power and uarts, this is the perfect flight controller for long-range GPS builds. And the TwinG configuration makes it the perfect Fc for builds like macro quads, cinematic filming rigs and x-class racers that are a bit trickier to tune.TwinG Gyro Setup
The Betaflight target's default setting is 'gyro_to_use = both' / Gyro fusion is active!
To check the current setting, please use CLI and type 'get gyro' to find the responding entry.
Change the settings with 'set gyro_to_use = ' and type 'save'.
To get the most reliable performance or encounter noise, oscillation and bent props: Please use the default setting 'both".
For Single Gyro use, please use the debugging options to find and tune for the cleaner gyro, but lose the dynamic fusion and averaging.
BF offers the following dual gyro debug options: dual_gyro_raw, dual_gyro, dual_gyro_diff, dual_gyro_combined.
BlackboxLog explorer graph: dual_gyro_raw Debugging = [0] Roll Gyro1, [1] Pitch Gyro1, [2] Roll Gyro2, [3] Pitch Gyro2.
The displayed graph will show the Gyro_Raw reading (no filters applied), both gyros can be compared.SucceX F7 V2.1 TwinG Specifications
MCU:216MHz STM32F722
Gyro:TwinG ICM20689
Blackbox:32MB
Betaflight OSD:YES
BEC:5V 2.5A
Uarts:5
Telemetry :Supported (UART5)
INA Pad:nuart2
Input voltage:2-6S,MAX 8S
Betaflight Firmware:betaflight_4.0.5_STM32F7X2.hex
CLI config:IFLIGHTF7_TWIN_G.config
Size :36*36mm /30.5 * 30.5mm φ4 mountingPhysical
Mounting hole:20*20mm,φ4mm with Grommets φ3mm
Size:36*36mmSucceX 60A V2 4-in-1 ESC SPECS:
MCU:STM32F051K66
Current Sensor: Yes
Input: 2-6S lipo
Telemetry: Yes
Installing Hole: 30.5x30.5mm, M3
Target: iFlight-BL32-4IN1
BLHeliSuite:http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
Constant: 60Amps
Burst: 70Amps
Weight:16.7g
Dimensions: 41*41mm
Mounting Holes: 30.5*30.5mm,M3
Supports Dshot1200,Proshot,Oneshot,MultishotPackage Included:
SucceX F7 V2.1 TwinG FC
SucceX 60A V2 BLHeli_32 4-in-1 ESC
